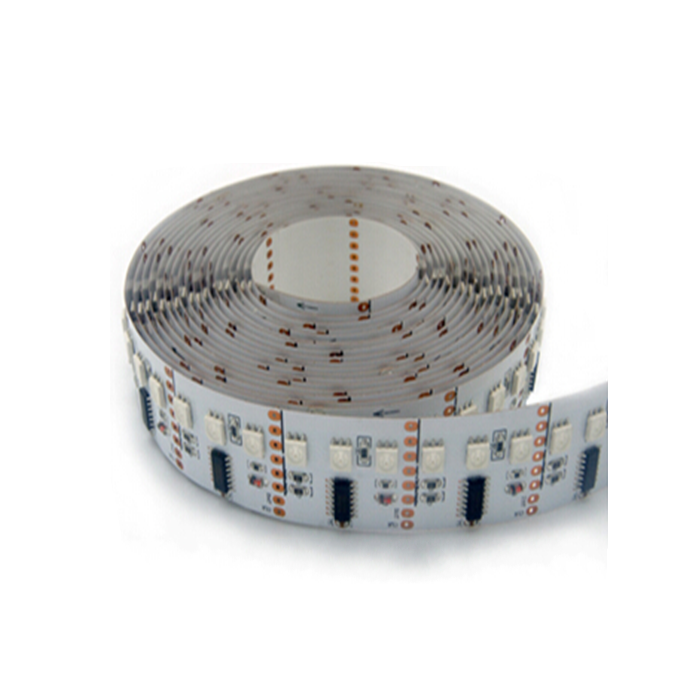

WS2801 12V Addressable LED Strip RGB 5050 32Pixels/M 5M 480LEDs Light
Specifications
Voltage:12V DC
Power: 24W / Meter
LED type :SMD 5050 RGB
Emitting color: Changeable
LED quantity: 96 LEDs/meter, 5 meters length, total 480 LEDs
IC type :WS2801
IC quantity: 32 ICs/meter, 5 meters length, total 160 ICs
Pixel quantity: 32 Pixels/meter, 5 meters length, total 160 Pixels
PCB color: White PCB
PCB width : 25mm
Grey Grade: 256
Protection Rate: Pls Choose
IP30 Non-Waterproof with 3M Tape on the back
IP65 Waterproof Dripping Glue with 3M Tape on the back
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Connection:
Signal wire: DC+, CLK, DAT, GND
DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
Support online control
Package Include:
1 Roll of 16.4ft (5Meters) WS2801 12V Addressable LED Strip RGB 5050 32Pixels/M 5M 480LEDs Light
CE and RoHS approved
