We supply high quality Skydance Led products to worldwide for many years.
Skydance's products are widely used in various dimming projects such as buildings, hotels, offices,
museums, public spaces, outdoor lighting, etc.
These projects include lighting control functions such as dimming, color tempering, adjusting RGB,
adjusting RGBW, zoning and networking, and scene storage, among others.
They have been used in prominent projects, such as China Central Television (CCTV) Headquarters,
Lausanne Opera House, Guangzhou West Tower, Guangzhou Cultural Oriental, and Macau Galaxy Hotel , to name a few.
We have helped our customers control smart lights, maximize energy use, drive overall efficiency and deliver new experiences.
Technical parameters
1.Input voltage: 5-24VDC
2.Output type: PWM constant voltage
3.Output current: 4CH, 5A/CH
4.Output power: 100-480W
5.Grey levels: 4096/CH
6.Dimming range: 0-100%
7.Remote distance: 30m
8.Working temperature: -30℃~55℃
9.Dimension: L115×W48×H67mm
10.Weight: 120g
Summary
1.Din rail mounted constant voltage controller, four channel output, 5A per channel.
2.Default as RGBW controller, create colorful static or dynamic effect.
3.Can also be used as RGB, color temperature or dimming controller, good compatibility.
4.Full compatibility with a variety of single color, dual color and RGB/RGBW remoters.
5.PWM achieve 4096 levels flicker-less dimming.
6.When control RGB/RGBW lamp, built in 30 change mode optional.
7.Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.
8.Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
9.Work with power repeater to expand output unlimitedly.
Package Content:

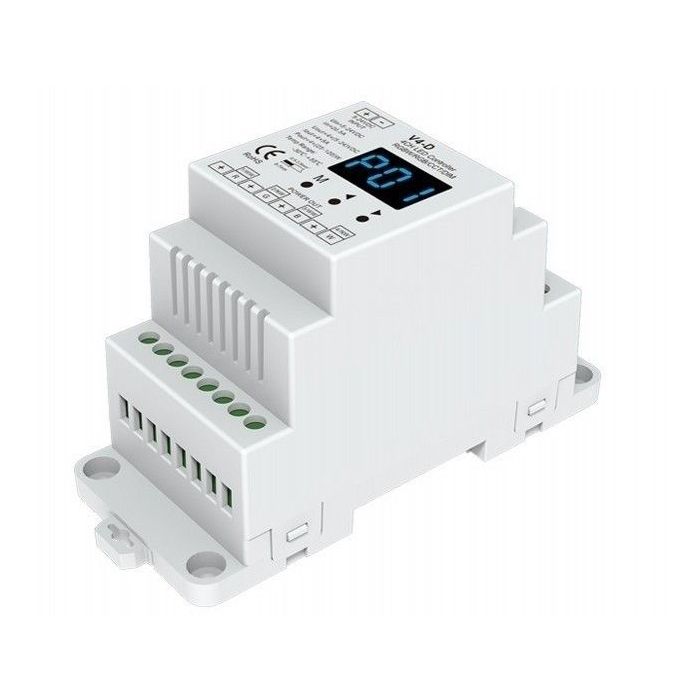

1 Piece of V4-D Led Controller Skydance Lighting Control System CV LED 4CH 5-24V
CE and RoHS approved
