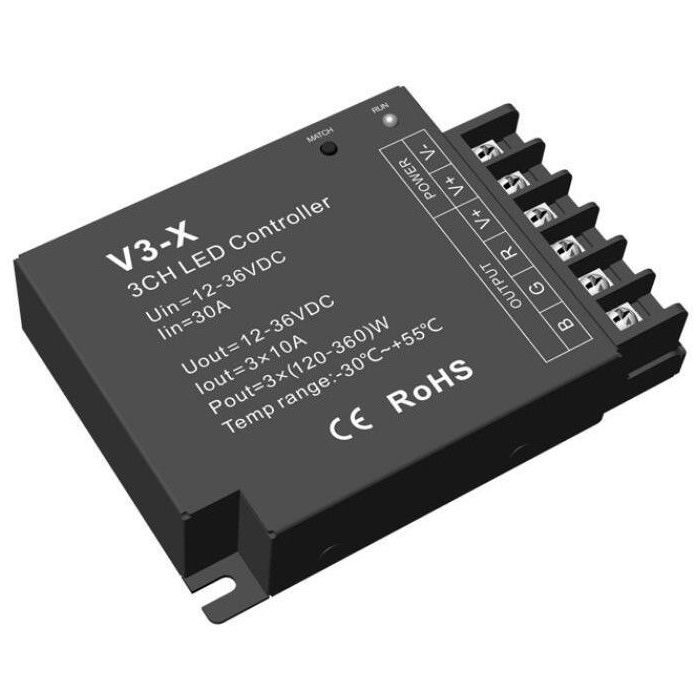

V3-X Led Controller Skydance Lighting Control System 12-36V CV 3CH

£9.76
In stock
SKU
V3-X Led Controller Skydance Lighting Control System

V3-X Led Controller Skydance Lighting Control System 12-36V CV 3CH is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

 We supply high quality Skydance Led products to worldwide for many years.

Skydance's products are widely used in various dimming projects such as buildings, hotels, offices,

museums, public spaces, outdoor lighting, etc.

These projects include lighting control functions such as dimming, color tempering, adjusting RGB,

adjusting RGBW, zoning and networking, and scene storage, among others.

They have been used in prominent projects, such as China Central Television (CCTV) Headquarters,

Lausanne Opera House, Guangzhou West Tower, Guangzhou Cultural Oriental, and Macau Galaxy Hotel , to name a few.

We have helped our customers control smart lights, maximize energy use, drive overall efficiency and deliver new experiences.

Features

1.10A 3 channel PWM constant voltage RF controller.

2.Default as RGB controller, need match RGB remote, create colorful static or dynamic effect.

3.Can also be used as color temperature or single color dimming controller, good compatibility.

4.Full compatibility with a variety of single color, dual color and RGB remote.

5.Smooth dimming and switch without any flickering.

6.When control RGB lamp, built in 10 mode, include jump or gradual change style, adjustable speed and brightness.

7.Adopt 2.4GHz wireless technology, can accept up to 10 remote control.

8.Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with

WiFi-Relay controller.User can customize own RGB change mode list by APP for advanced function.

9.Work with power repeater to expand output unlimitedly.

Match guide

V3-X receiver match with all kinds of single or multiple zone 2.4G RF remote controller.

After match different color RF remote, the receiver become the same color controller.

Use Match key

1. Match: Short press match key, then press on/off key or zone key of the remote within 5s.

2. Delete: Long press match key for 5s, delete all matched remote.

3. Multiple zone remote only use zone key to match each zone receiver.

Use Power-up

1. Match: Switch off the power, then switch on power again,short press on/off key or zone key 3

times on the remote quickly within 5s after power on,the link is done once the light blinks 3 times.

2. Delete: Switch off the power, then switch on power again,short press on/off key or zone key 5

times on the remote quickly within 5s after power on,the unlink is done once the light blinks 5 times.

3. Multiple zone remote only use zone key to match each zone receiver.

Package Content:

1 Piece of V3-X Led Controller Skydance Lighting Control System 12-36V CV 3CH

1 Piece of instruction User's Manual

V3X_CV_3CH_10A_DC_36V_LED_Controller_1

V3X_CV_3CH_10A_DC_36V_LED_Controller_2

V3X_CV_3CH_10A_DC_36V_LED_Controller_3

V3X_CV_3CH_10A_DC_36V_LED_Controller_4

V3X_CV_3CH_10A_DC_36V_LED_Controller_5

CE and RoHS approved
