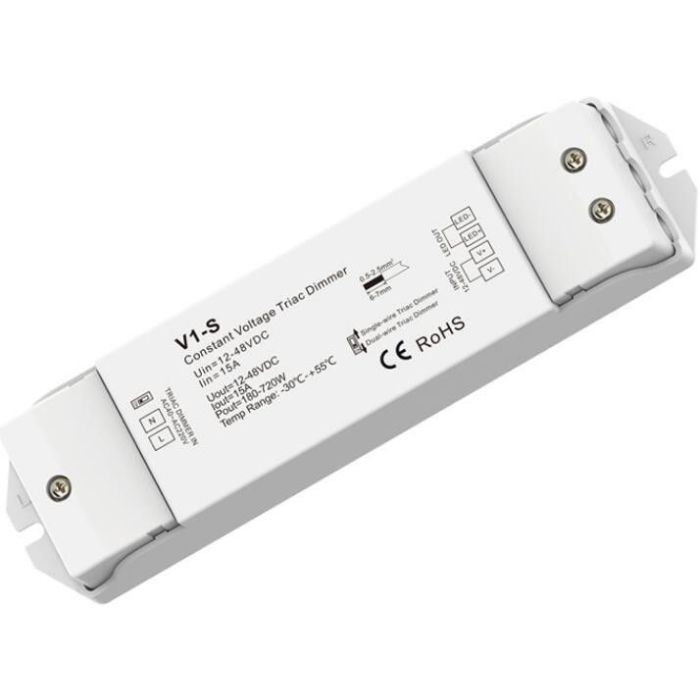

V1-S Led Controller Skydance Lighting Control System CV Triac LED Dimmer 1CH 15A

£6.37
In stock
SKU
V1-S Led Controller Skydance Lighting Control System

V1-S Led Controller Skydance Lighting Control System CV Triac LED Dimmer 1CH 15A  is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

 We supply high quality Skydance Led products to worldwide for many years.

Skydance's products are widely used in various dimming projects such as buildings, hotels, offices,

museums, public spaces, outdoor lighting, etc.

These projects include lighting control functions such as dimming, color tempering, adjusting RGB,

adjusting RGBW, zoning and networking, and scene storage, among others.

They have been used in prominent projects, such as China Central Television (CCTV) Headquarters,

Lausanne Opera House, Guangzhou West Tower, Guangzhou Cultural Oriental, and Macau Galaxy Hotel , to name a few.

We have helped our customers control smart lights, maximize energy use, drive overall efficiency and deliver new experiences.

The dimmer is constant voltage dimmer, input DC12-48V as power input, input AC40V-220V as dimming signal,

output current is 15A max. Support all triac dimming system, such as Lutrom,Clipsal,Dynalite, etc.

Feature

1.Triac dimming, input AC40V-220V dimming signal.

2.Support all Triac dimming system.

3.One channel PWM constant voltage output, output current 15A max.

4.Smooth dimming curve without any flicker.

5.0-100% brightness adjustment.

6.Over current protection, short circuit protection, over temperature protection.

7.LED indicate current state.

Technical parameters

Input voltage: 12-48VDC

Dimming voltage: 40-220VAC

Output current: 15A max

Output power: 12V: 180W max 24V: 360W max 36V: 540W max 48V: 720W max

Working temperature: -30℃~55℃

Product size: L175×W45×H27mm

Package Content:

1 Piece of V1-S Led Controller Skydance Lighting Control System CV Triac LED Dimmer 1CH 15A

1 Piece of instruction User's Manual

V1S_1CH_15A_CV_Triac_Dimmer_1

V1S_1CH_15A_CV_Triac_Dimmer_2

V1S_1CH_15A_CV_Triac_Dimmer_3

V1S_1CH_15A_CV_Triac_Dimmer_4

CE and RoHS approved
