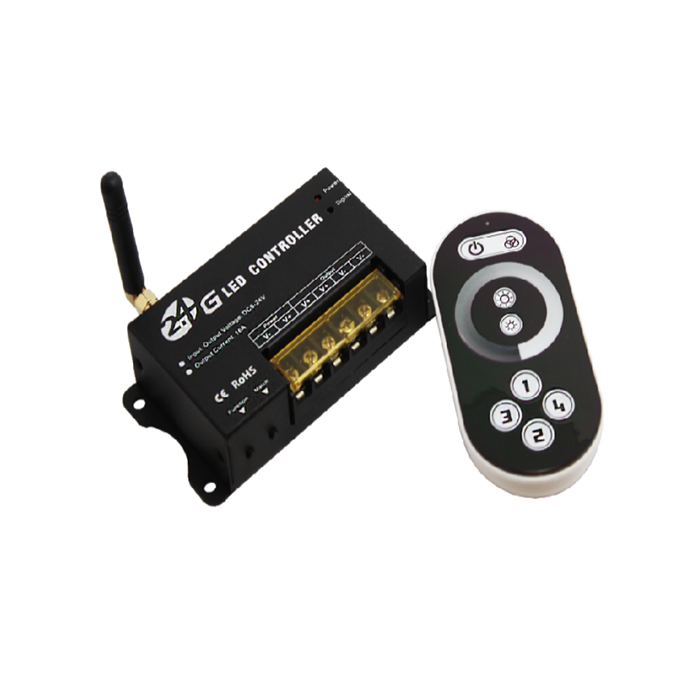

RF203 Leynew Led Dimmer 2.4G Touch Wireless Single Color Controller

2.4G controller is newly introduced wireless high-power LED controller of our company. It equips with touch remote control,

touch remote control adopts high precision capacitance touch control technology, you can select the color you need by one button.

It is convenient and easy. Each controller has a globally unique address code, in order to prevent confusion caused by controlling repeated

address code. Each controller can be equipped with four remote controls, can achieve multiple controllers synchronization control. It is used

for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc.

It has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing,

gradual changing, stroboflash and other effects of change. It can achieve single control and group control, easy for user to use.

Technical Parameters

Controller

working temperature: -20-60℃

supply voltage: DC5V-24V

output: 1 channels

connection mode: common anode

external dimension: L120ΧW62ΧH27mm

packing size: L185ΧW145ΧH55 mm

net weight: 220g

gross weight: 314g

static power consumption: <1W

output current: <16A

output power: 5V:<80W,12V:<192W,24V:<384W

controller with short circuit protection

the controller output frequency: 325HZ

Touch Remote Control

working temperature: -20-60℃

power supply mode: AAA * 3

supply voltage: 1.5V * 3

transmission frequency: 2.4Ghz

standby power consumption: 0.015mW

standby current: 60uA

working current: 200uA

emission current: 10mA

remote distance: about 30m

standby time: 6 months

remote control weight: 94g

Package Included:

1 Piece of RF203 Leynew Led Dimmer 2.4G Touch Wireless Single Color Controller

Touch_Panel_Series_RF203_1

Touch_Panel_Series_RF203_2

Touch_Panel_Series_RF203_3

Touch_Panel_Series_RF203_4

Touch_Panel_Series_RF203_5

Touch_Panel_Series_RF203_6

Touch_Panel_Series_RF203_7

Touch_Panel_Series_RF203_8

Touch_Panel_Series_RF203_9

Touch_Panel_Series_RF203_10

Touch_Panel_Series_RF203_11

Touch_Panel_Series_RF203_12


CE and RoHS approved
