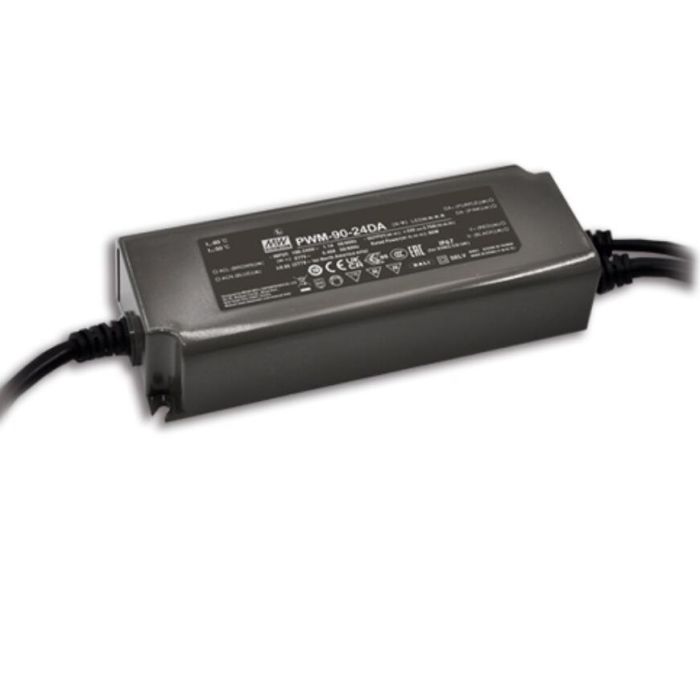

PWM-90 Series Mean Well 90W CV PWM Output Led Driver Supply Driver

Features

Constant Voltage PWM style output

Emergency lighting application is available
according to IEC61347-2-13

Built-in active PFC function and class II design

Class 2 power unit(except PWM-90-12)

No load power consumption <0.5W

Fully encapsulated with IP67 level

Function: 3 in 1 dimming (dim-tof); DALI/DALI-2

Minimum dimming level 0.2% for DALI type

Typical lifetime>50000 hours and 5 years warranty

Description

PWM-90 series is a 90W LED AC/DC LED driver featuring the constant voltage mode with PWM style

output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips. PWM-90

operates from 90~ 305VAC and offers models with different rated voltage ranging between 12V and 48V.

Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for
-40°C ~ +85 °C case temperature under free air convection. The entire series is rated with IP67 ingress

protection level and is suitable to work for dry, damp or wet locations. PWM-90 is equipped with dimming

function that varies the duty cycle of the output, providing great flexibility for LED strips applications.



Package Included:

1 Piece of PWM-90 Series Mean Well 90W CV PWM Output Led Driver Supply Driver


CE and RoHS approved
