The 0/1-10V LED dimming driver is designed with 1 channel 0/1-10V input and 1 channel PWM output. 0%-100% dimming
range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey
scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering. Besides
0/1-10V signal,the dimming driver can be controlled by push switch and potemtiometer as well.
Feature
1.1 channel 0/1-10V input, 1 channel PWM constant voltage output.
2.0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
3.Smooth dimming without any flickering.
4.Compatible with active or passive 0-10V, 1-10V dimmer, can solve the fluorescent lamp dimming system compatible with LED lighting.
5.0/1-10V CV LED dimming driver can connect unlimited number of CV or CC power repeaters in series or in parallel to expand output power.
Package Content:

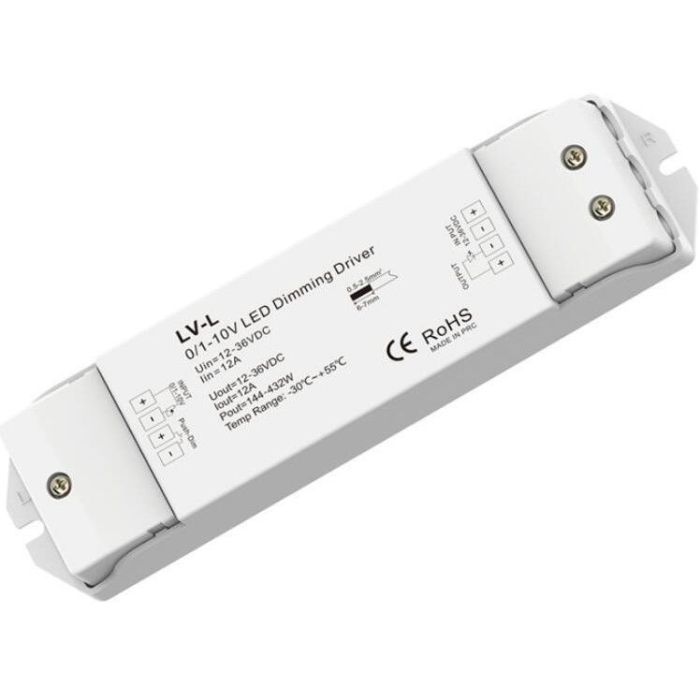

1 Piece of LV-L Led Controller Skydance Lighting Control System Dimming Driver CV 12A 12-36V 0/1-10V
1 Piece of instruction User's Manual
CE and RoHS approved
