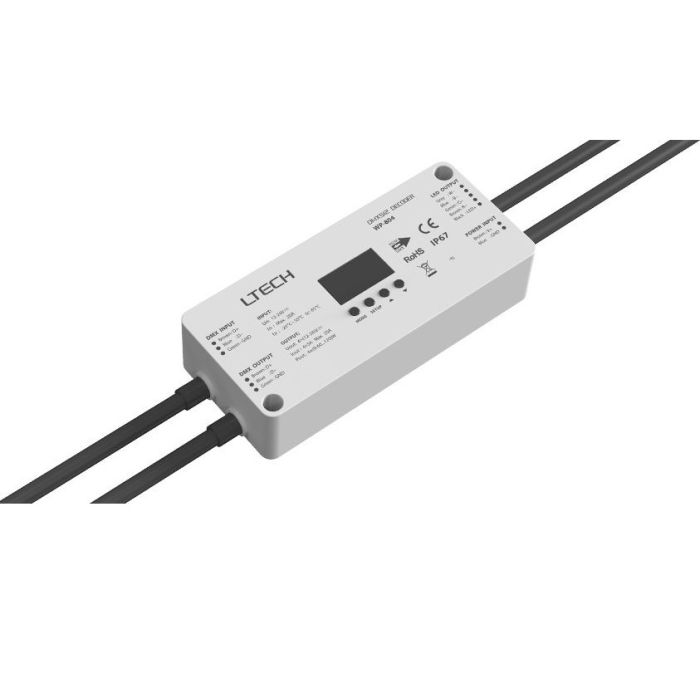

Ltech WP-804 Waterproof Led Controller DMX RDM CV Decoder

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

WP-804 uses the RDM protocol and supports DMX512/RDM signal bi-directional communication.
The RDM pro- tocol enables the remote management such as reading / writing DMX address (For
RDM functions the DMX master must be RDM compliant). WP-804 has 4 channel output with max.

5A output for each channel. It can be used to control DIM, CT, RGB, RGBW constant voltage lights
and achieve 0-100% dimming or various lighting effects. WP-804 can be operated in DMX mode or in customized mode.

It is easy to set address via digital display and buttons. WP-804 is a waterproof decoder with IP67 rating, sui- table for outdoor and damp environments.

Input signal    DMX512/RDM

Input Voltage    12-24V

Output Current    Max. 5A/CH Max. 20A(4CH)

Output Power    (0-60...120)W/CH Max. 480W(4CH)

Dimming Range    0-100%

Working Temp.    -20°C~50°C

Dimensions(L×W×H)    L164×W70×H36mm

Package Size(L×W×H)    L193×W127×H41mm

Weight (G.W)    690g

Protection    Short circuit, over temperature, over current protection, auto recovery.

Package Included:

1 Piece of Ltech WP-804 Waterproof 4CH Constant Voltage DMX RDM Decoder Drivers

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
