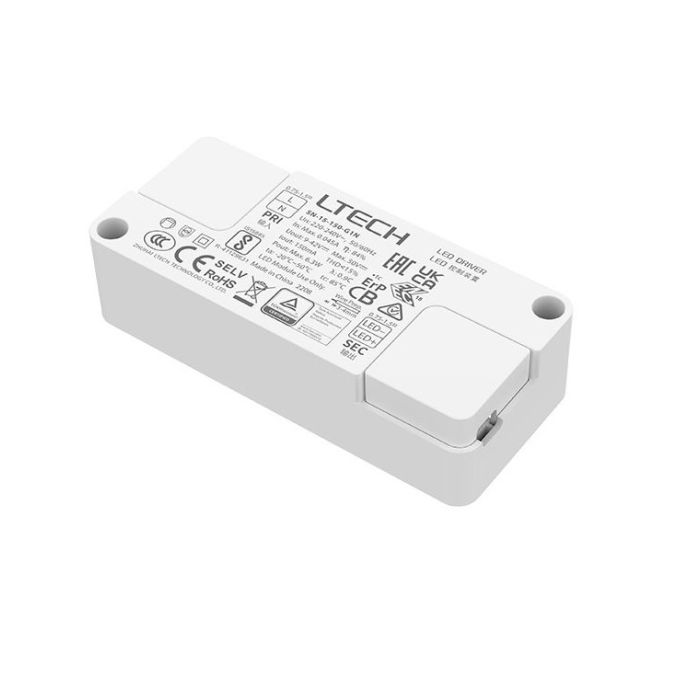

Ltech SN-15-220-G1N SN-15-200-G1N SN-15-180-G1N SN-15-150-G1N Non-dimmable CC LED Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

The housing is made from V0 flame retardant PC materials.

Ultra-small, thin and light screwless end cap. High performance, high efficiency, low THD.

Innovative thermal management technology intelligently protects the life of the LED driver.

Overheat, overvoltage, overload, short circuit protection and automatic recovery.

Suitable for ClassI/II/III indoor light fixtures.

Indoor office lighting, decorative lighting and commercial lighting.



SN-15-350-G1N

Input Voltage:     220-240Vac

PWM Frequency:    Non dimming

Output Type:    Constant Current

Output Feature:    Isolation

Protection Grade:    IP20

Efficiency (Typ.):    ≥87% at full load

Power Factor:    PF>0.95 at full load

Output Voltage:    9-42Vdc

Output Current:    350mA

Output Power:    3.15W-14.7W

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS

Warranty:    5 years

SN-15-300-G1N

Input Voltage:     220-240Vac

PWM Frequency:    Non dimming

Output Type:    Constant Current

Output Feature:    Isolation

Protection Grade:    IP20

Efficiency (Typ.):    ≥87% at full load

Power Factor:    PF>0.95 at full load

Output Voltage:    9-42Vdc

Output Current:    300mA

Output Power:    2.7W-12.6W

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS

Warranty:    5 years

SN-15-250-G1N

Input Voltage:     220-240Vac

PWM Frequency:    Non dimming

Output Type:    Constant Current

Output Feature:    Isolation

Protection Grade:    IP20

Efficiency (Typ.):    ≥86% at full load

Power Factor:    PF>0.9 at full load

Output Voltage:    9-42Vdc

Output Current:    250mA

Output Power:    2.25W-10.5W

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS

Warranty:    5 years

SN-15-220-G1N

Input Voltage:     220-240Vac

PWM Frequency:    Non dimming

Output Type:    Constant Current

Output Feature:    Isolation

Protection Grade:    IP20

Efficiency (Typ.):    ≥86% at full load

Power Factor:    PF>0.9 at full load

Output Voltage:    9-42Vdc

Output Current:    220mA

Output Power:    1.98W-9.24W

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS

Warranty:    5 years

SN-15-200-G1N

Input Voltage:     220-240Vac

PWM Frequency:    Non dimming

Output Type:    Constant Current

Output Feature:    Isolation

Protection Grade:    IP20

Efficiency (Typ.):    ≥86% at full load

Power Factor:    PF>0.9 at full load

Output Voltage:    9-42Vdc

Output Current:    200mA

Output Power:    1.8W-8.4W

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS

Warranty:    5 years



SN-15-180-G1N

Input Voltage:     220-240Vac

PWM Frequency:    Non dimming

Output Type:    Constant Current

Output Feature:    Isolation

Protection Grade:    IP20

Efficiency (Typ.):    ≥85% at full load

Power Factor:    PF>0.9 at full load

Output Voltage:    9-42Vdc

Output Current:    180mA

Output Power:    1.62W-7.56W

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS

Warranty:    5 years

SN-15-150-G1N

Input Voltage:     220-240Vac

PWM Frequency:    Non dimming

Output Type:    Constant Current

Output Feature:    Isolation

Protection Grade:    IP20

Efficiency (Typ.):    ≥84% at full load

Power Factor:    PF>0.9 at full load

Output Voltage:    9-42Vdc

Output Current:    150mA

Output Power:    1.35W-6.3W

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS

Warranty:    5 years

Package Included:

1 Piece of Ltech Non-dimmable CC LED Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
