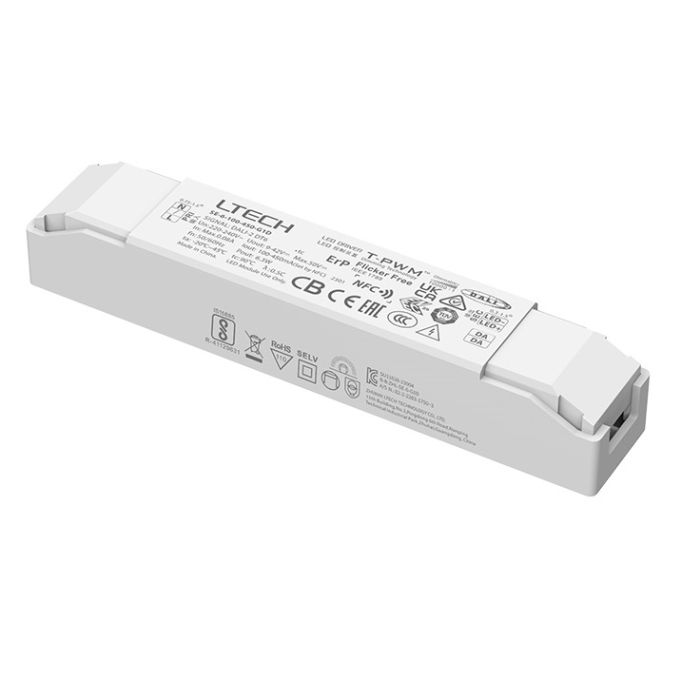

Ltech SE-6-100-450-G1D SE-6-350-700-G1D CC DALI-2 LED Driver Controller

£11.94
In stock
SKU
Ltech SE-6-100-450-G1D SE-6-350-700-G1D CC DALI-2 LED
  • Buy 50 for £10.87 each and save 9%

For more DALI Controller Driver, pls check here: ttps://www.agoau.com/ltech-controller/dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoau.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

Ltech SE-6-100-450-G1D SE-6-350-700-G1D CC DALI-2 LED Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.

Ultra small, thin and lightweight, screwless end cap.

Change the output current, DALI address and other parameters via the APP.

Set the DALI group and scene in the advanced DALI template via the APP.

Adjustable output current with 1mA step.

Soft-on and fade-in dimming function enhances your visual comfort.

T-PWMTM super deep dimming technology, 0.01% dimming depth.

The whole dimming process is flicker-free with high frequency exemption level.

Comply with the EU’s ErP Directive, networked standby<0.5W.

When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.

Overheat, over voltage, overload, short circuit protection and automatic recovery.

Suitable for ClassI/II/III indoor light fixtures.

Normal service life can reach 100,000 hours.

5-year warranty (Rubycon capacitor).

SE-6-100-450-G1D

Rubycon capacitor

Dimming Interface:    DALI-2 DT6

DC Voltage Range:    220-240Vdc

AC Voltage Range:    220-240Vac

Input Voltage:    230Vac

Power Factor:     PF>0.5/230Vac (at full load),

Efficiency:    75%

Fluctuation Level:    High frequency exemption assessment level.

Output Voltage:    9-42Vdc

Output Current:    100-450mA

Output Power:    0.9-6.3W

Dimming Range:    0~100%, down to 0.01%

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ERP,ROHS

Warranty:    5 years

SE-6-350-700-G1D

Rubycon capacitor

Dimming Interface:    DALI-2 DT6

DC Voltage Range:    220-240Vdc

AC Voltage Range:    220-240Vac

Input Voltage:    230Vac

Power Factor:     PF>0.5/230Vac (at full load),

Efficiency:    75%

Fluctuation Level:    High frequency exemption assessment level.

Output Voltage:    2-18Vdc

Output Current:    350-700mA

Output Power:    0.7-6.3W

Dimming Range:    0~100%, down to 0.01%

Certification:    CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ERP,ROHS

Warranty:    5 years

Package Included:

1 Piece of Ltech LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
