Ltech SE-30-200-800-W2A SE-40-300-1050-W2A NFC CC 0-10V Tunable Driver Led Controller Control Dimmer Decoder
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Change the output current, dimming mode and other parameters via the APP.
Adjustable output current with 1mA step.
Automatically recognize 0-10V and 1-10V input signal.
Ultra-low consumption of 0-10V ports < 0.05mA.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWMTM super deep dimming technology, 0.01% dimming depth.
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassI/II/III indoor light fixtures.
Normal service life can reach 100000 hours.

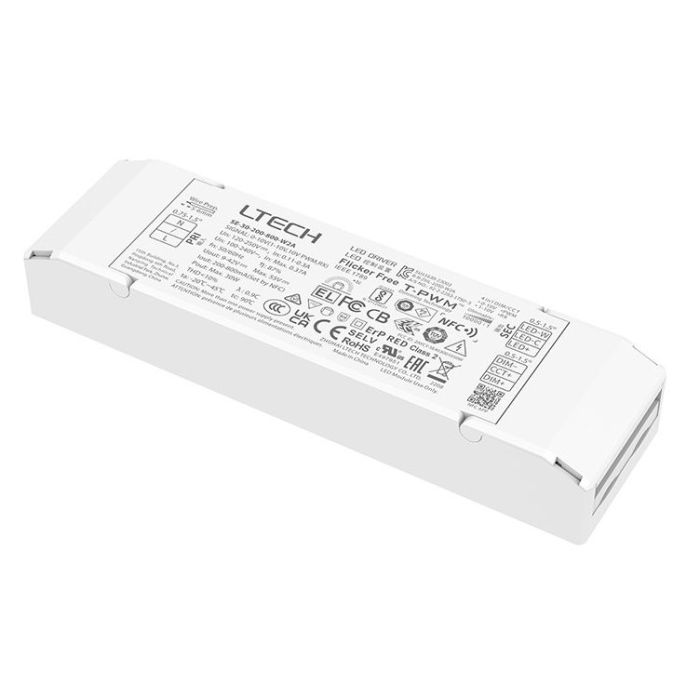

SE-30-200-800-W2A
Rubycon capacitor
Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
Efficiency: 87%
Fluctuation Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 200-800mA
Output Power: 1.8W-30W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
Warranty: 5 years(Rubycon capacitor)
SE-40-300-1050-W2A
Rubycon capacitor
Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
Efficiency: 88%
Fluctuation Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 300-1050mA
Output Power: 2.7W-40W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
Warranty: 5 years(Rubycon capacitor)
Package Included:
1 Piece of Ltech NFC CC 0-10V Tunable Driver Controller
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
