Ltech SE-30-150-900-G1T SE-40-300-1050-G1T Constant Current Triac LED Driver
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
Small size and light weight. The clamshell design and screwless type for strain-relief.
Support Leading edge(Triac), Trailing edge(ELV).
With soft-on and fade-in dimming function, enhancing your visual comfort.
T-PWMTM dimming technology allows continuous and flicker-free images under high-speed photography.
Dimming from 0~100%, down to 0.01%.
The whole dimming process is flicker-free with high frequency exemption level.
Multiple current levels and wide voltage range. Suitable for different power of LEDs.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Innovative thermal management technology intelligently protects the life of the LED driver.
Overheat, overload, short circuit protection and automatic recovery.
Suitable for ClassI/II/III indoor light fixtures.
Up to 50000 hours life time.

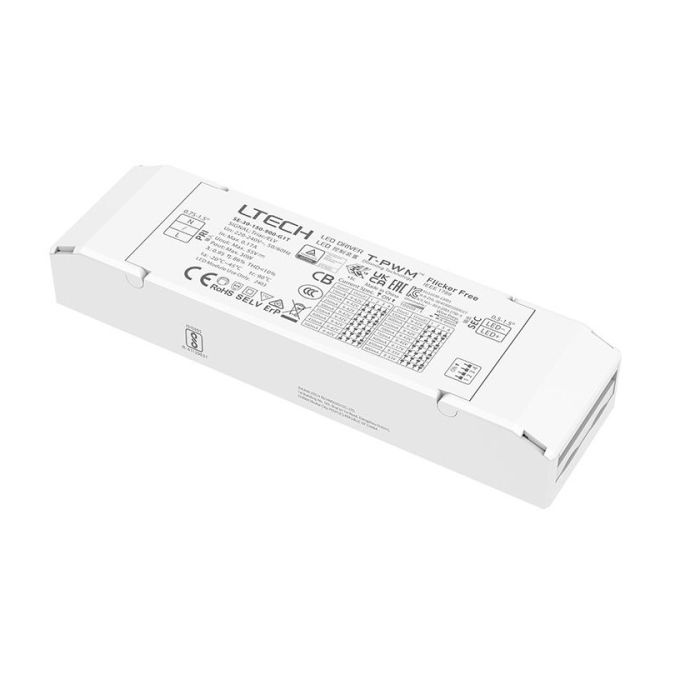

SE-30-150-900-G1T
Rubycon capacitor
Dimming interface: Triac/ELV
Input voltage: 220-240Vac
Power Factor: PF>0.95/230Vac, at f
ull load
Efficiency(typ.): >86%@750mA
Strobe Level: High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 150-900mA
Output Power: 1.35W-30W
Dimming range: 0~100%, down to 0.01%
Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,BIS,ROSH
Warranty: 5 years
Sec. output:
|
Pout(Max.)
|
Vout(DC)
|
Constant(DC)
|
|
1.35-6.3W
|
9-42V
|
150mA
|
|
1.8-8.4W
|
9-42V
|
200mA
|
|
2.25-10.5W
|
9-42V
|
250mA
|
|
2.7-12.6W
|
9-42V
|
300mA
|
|
3.15-14.7W
|
9-42V
|
350mA
|
|
3.6-16.8W
|
9-42V
|
400mA
|
|
4.05-18.9W
|
9-42V
|
450mA
|
|
4.5-21W
|
9-42V
|
500mA
|
|
4.95-23.1W
|
9-42V
|
550mA
|
|
5.4-25.2W
|
9-42V
|
600mA
|
|
5.85-27.3W
|
9-42V
|
650mA
|
|
6.3-29.4W
|
9-42V
|
700mA
|
|
6.75-30W
|
9-40V
|
750mA
|
|
7.2-29.6W
|
9-37V
|
800mA
|
|
7.65-29.75W
|
9-35V
|
850mA
|
|
8.1-29.7W
|
9-33V
|
900mA
|
SE-40-300-1050-G1T
Rubycon capacitor
Dimming interface: Triac/ELV
Input voltage: 220-240Vac
Power Factor: PF>0.95/230Vac, at full load
Efficiency(typ.): >88%@950mA
Strobe Level: High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 300-1050mA
Output Power: 2.7W-40W
Dimming range: 0~100%, down to 0.01%
Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,BIS,ROSH
Warranty: 5 years
Sec. output:
|
Pout(Max.)
|
Vout(DC)
|
Constant(DC)
|
|
2.7-12.6W
|
9-42V
|
300mA
|
|
3.15-14.7W
|
9-42V
|
350mA
|
|
3.6-16.8W
|
9-42V
|
400mA
|
|
4.05-18.9W
|
9-42V
|
450mA
|
|
4.5-21W
|
9-42V
|
500mA
|
|
4.95-23.1W
|
9-42V
|
550mA
|
|
5.4-25.2W
|
9-42V
|
600mA
|
|
5.85-27.3W
|
9-42V
|
650mA
|
|
6.3-29.4W
|
9-42V
|
700mA
|
|
6.75-31.5W
|
9-42V
|
750mA
|
|
7.2-33.6W
|
9-42V
|
800mA
|
|
7.65-35.7W
|
9-42V
|
850mA
|
|
8.1-37.8W
|
9-42V
|
900mA
|
|
8.55-39.9W
|
9-42V
|
950mA
|
|
9-40W
|
9-40V
|
1000mA
|
|
9.45-39.9W
|
9-38V
|
1050mA
|
Package Included:
1 Piece of Ltech Constant Current Triac LED Driver
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
