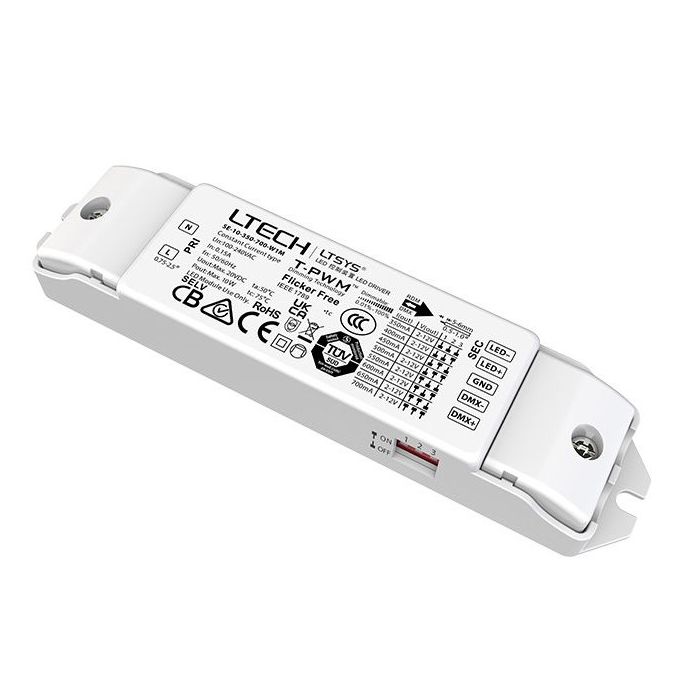

Ltech SE-10-350-700-W1M SE-12-100-400-W1M SE-12-350-700-W1M Dmx Driver

£9.82
In stock
SKU
Ltech CC DMX LED Driver Controller
  • Buy 50 for £9.13 each and save 7%

For more DMX512/RDM Controller Driver, pls check here: https://www.agoau.com/ltech-controller/dmx512-rdm-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoau.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

Ltech SE-10-350-700-W1M SE-12-100-400-W1M SE-12-350-700-W1M Dmx Controller Driver Decoder Control Dimmer

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

SE-10-350-700-W1M

Rubycon capacitor

Dimming Interface:    DMX512/RDM

Input Voltage:    100-240Vac Max. 265Vac

Power Factor:     PF>0.95/115Vac , PF>0.80/230Vac,at full load

Efficiency:    75%

Fluctuation Level:    No video flicker / High frequency exemption assessment level.

Output Voltage:    2-12Vdc

Output Current:    350-700mA

Output Power:    0.7W~8.4W

Dimming Range:    0~100%, 0.01% dimming depth.

Certification:    CCC,CB,CE,RCM,TUV,UKCA,ROHS

Warranty:    5 years

Sec. output:


Pout(Max.)      Vout(DC)      Constant(DC)

0.7-4.2W            2-12V              350mA

0.8-4.8W            2-12V             400mA

0.9-5.4W            2-12V             450mA

1-6W                  2-12V             500mA

1.1-6.6W           2-12V             550mA

1.2-7.2W           2-12V            600mA

1.3-7.8W           2-12V            650mA

1.4-8.4W           2-12V             700mA


SE-12-100-400-W1M

Rubycon capacitor

Dimming Interface:    DMX512/RDM

Input Voltage:    100-240Vac Max. 265Vac

Power Factor:     PF>0.97/115Vac , PF>0.85/230Vac, at full load

Efficiency:    82%

Fluctuation Level:    No video flicker / High frequency exemption assessment level.

Output Voltage:    10-42Vdc

Output Current:    100-400mA

Output Power:    1W~12W

Dimming Range:    0~100%, 0.01% dimming depth.

Certification:    CCC,CB,CE,RCM,TUV,UKCA,ROHS

Warranty:    5 years

Sec. output:

Pout(Max.)     Vout(DC)    Constant(DC)

1-4.2W            10-42V            100mA

1.5-6.3W         10-42V            150mA

2-8.4W            10-42V            200mA

2.5-10.5W     10-42V             250mA

3-12W           10-40V            300mA

3.5-12W        10-34V            350mA

4-12W            10-30V           400mA


SE-12-350-700-W1M

Rubycon capacitor

Dimming Interface:    DMX512/RDM

Input Voltage:    100-240Vac Max. 265Vac

Power Factor:     PF>0.97/115Vac , PF>0.85/230Vac, at full load

Efficiency:    81%

Fluctuation Level:    No video flicker / High frequency exemption assessment level.

Output Voltage:    10-24Vdc

Output Current:    350-700mA

Output Power:    3.5W~12W

Dimming Range:    0~100%, 0.01% dimming depth.

Certification:    CCC,CB,CE,RCM,TUV,UKCA,ROHS

Warranty:    5 years

Sec. output:

Pout(Max.)       Vout(DC)        Constant(DC)

1.05-8.4W          3-24V              350mA

1.2-9.6W            3-24V              400mA

1.35-10.8W       3-24V              450mA

1.5-12W            3-24V              500mA

1.65-12.1W       3-22V             550mA

1.8-12W          3-20V               600mA

1.95-12W        3-18.5V              650mA

2.1-12W          3-17V               700mA


Package Included:

1 Piece of Ltech DMX LED Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
