Ltech SE-10-350-700-W1A SE-12-100-400-W1A SE-12-350-700-W1A 0-10V Constant Current LED Power Driver Controller
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Dimming interface: 0-10V (1-10V/10VPWM/RX).
T-PWM digital dimming, present a perfect visual experience.
Built-in SCM, dimming curve and smoothing time can be customized.
Automatic recognition of 0-10V, 1-10V input signal.
Dimming range: 0~100%, LED start at 0.01% possible.
Flicker-free (IEEE 1789), achieve the level of exemption assessment.
Innovative thermal management technology, intelligent power life protection.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for I/II/III.

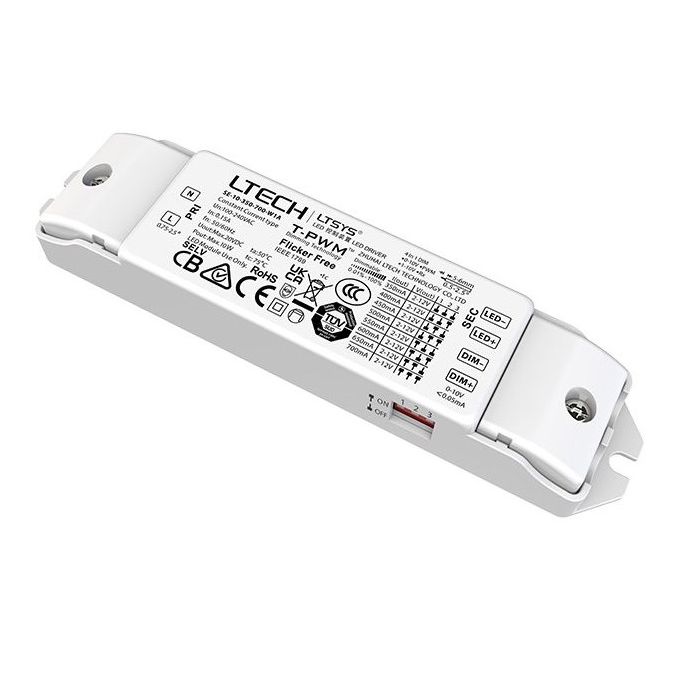

SE-10-350-700-W1A
Rubycon capacitor
Dimming Interface: 0-10V (1-10V/10VPWM/RX) 0-10V Interface consumption: <0.05mA
Input Voltage: 100-240Vac
Power Factor: PF>0.95/115Vac , PF>0.8/230Vac,at full load
Efficiency: 75%
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 2-12Vdc
Output Current: 350-700mA
Output Power: 0.7W~8.4W
Dimming Range: 0~100%, 0.01% dimming depth.
Certification: CCC,CB,CE,RCM,TUV,UKCA,ROHS
Warranty: 5 years
Sec. output:
|
Pout(Max.)
|
Vout(DC)
|
Constant(DC)
|
|
0.7-4.2W
|
2-12V
|
350mA
|
|
0.8-4.8W
|
2-12V
|
400mA
|
|
0.9-5.4W
|
2-12V
|
450mA
|
|
1-6W
|
2-12V
|
500mA
|
|
1.1-6.6W
|
2-12V
|
550mA
|
|
1.2-7.2W
|
2-12V
|
600mA
|
|
1.3-7.8W
|
2-12V
|
650mA
|
|
1.4-8.4W
|
2-12V
|
700mA
|
SE-12-100-400-W1A
Rubycon capacitor
Dimming Interface: 0-10V (1-10V/10VPWM/RX) 0-10V Interface consumption: <0.05mA
Input Voltage: 100-240Vac
Power Factor: PF>0.97/115Vac , PF>0.85/230Vac, at full load
Efficiency: 82%
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 10-42Vdc
Output Current: 100-400mA
Output Power: 1W~12W
Dimming Range: 0~100%, 0.01% dimming depth.
Certification: CCC,BIS,CB,CE,UKCA,ROHS
Warranty: 5 years
SE-12-350-700-W1A
Rubycon capacitor
Dimming Interface: 0-10V (1-10V/10VPWM/RX) 0-10V Interface consumption: <0.05mA
Input Voltage: 100-240Vac
Power Factor: PF>0.97/115Vac , PF>0.85/230Vac, at full load
Efficiency: 81%
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 10-24Vdc
Output Current: 350-700mA
Output Power: 3.5W~12W
Dimming Range: 0~100%, 0.01% dimming depth.
Certification: CCC,CB,CE,RCM,TUV,BIS,UKCA,ROHS
Warranty: 5 years
Package Included:
1 Piece of Ltech 0-10V Constant Current LED Power Driver Controller
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
