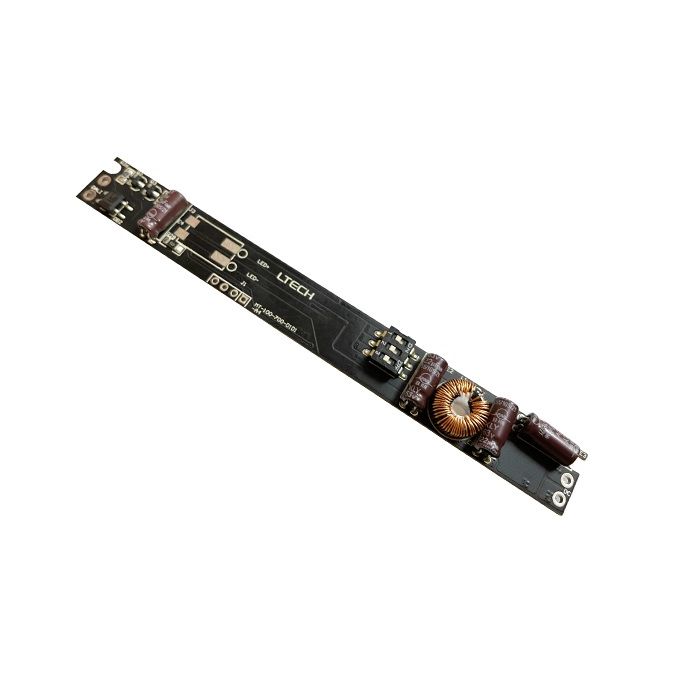

Ltech MT-100-400-D1D1 MT-350-700-D1D1 Magnetic CC DALI LED Driver Controller

£6.66
In stock
SKU
Ltech MT-100-400-D1D1 MT-350-700-D1D1 Magnetic CC DALI LED
  • Buy 50 for £6.26 each and save 6%

For more DALI Controller Driver, pls check here: ttps://www.agoau.com/ltech-controller/dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoau.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

Ltech MT-100-400-D1D1 MT-350-700-D1D1 Magnetic CC DALI LED Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

DALI Constant Current Driver Special for magnetic absorption lamp and linear

Not polarity.

Multi-current setting.

DC to DC Constant current output.

DALI 2.0 protocol.

Suitable for STUCCHI standard housing.

Magnetic installation application, quiet and without high-frequency interference sound.

Smooth dimming curve without flicker.

Short circuit, overload, no-load and anti-reverse protection.

5 years warranty.

MT-350-700-D1D1

Dimming Interface:    DALI

Input Voltage:    48Vdc±5% (Not polarity)

Efficiency:    95%

Fluctuation Level:    No video flicker / High frequency exemption level.

Output Voltage:    10~42Vdc

Output Current:    350-700mA

Output Power:    3.5W-29.4W

Dimming Range:    0~100%,dimming depth 1%

Certification:    CE,ROHS,FCC

Warranty:    5 years

Sec. output:

Pout(Max.)     Vout(DC)     Constant(DC)
3.5-14W        10-40V            350mA
4-16W           10-40V            400mA
4.5-18W        10-40V            450mA
5-20W           10-40V            500mA
5.5-22W        10-40V            550mA
6-24W           10-40V            600mA
6.5-26W        10-40V            650mA
7-28W           10-40V            700mA

MT-100-400-D1D1

Dimming Interface:    DALI

Input Voltage:    48Vdc±5% (Not polarity)

Efficiency:    95%

Fluctuation Level:    No video flicker / High frequency exemption level.

Output Voltage:    10~42Vdc

Output Current:    100-400mA

Output Power:    1W-16.8W

Dimming Range:    0~100%,dimming depth 1%

Certification:    CE,ROHS,FCC

Warranty:    5 years

Sec. output:

Pout(Max.)       Vout(DC)            Constant(DC)
1-4W                  10-40V                   100mA
1.5-6W               10-40V                   150mA
2-8W                  10-40V                   200mA
2.5-10W             10-40V                   250mA
3-12W                10-40V                   300mA
3.5-14W             10-40V                   350mA
4-16W                10-40V                   400mA

Package Included:

1 Piece of Ltech LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
