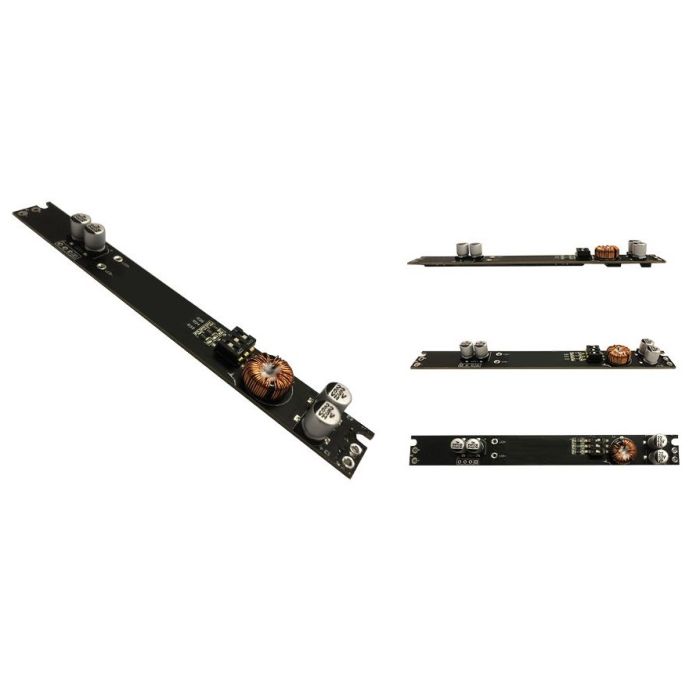

Ltech MT-100-400-D1A1 MT-350-700-D1A1 0-10V For Magnetic CC LED Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

No input polarity.

Multiple output current settings.

DC to DC constant current output.

Automatically identify 0-10V, 1-10V input.

Suitable for STUCCHI standard housings.

Magnetic installation is quiet without high-frequency sound.

Smooth dimming curves without flicker.

Short circuit, overload, no-load and anti-reverse protection.


MT-100-400-D1A1

Dimming Interface:    0-10V/1-10V

Input Voltage:    48Vdc±5% (No polarity)

Efficiency:    92%

Output Voltage:    10~42Vdc

Output Current:    100-400mA

Output Power:    1W-16.8W

Dimming Range:    0~100%,down to 1%

Certification:    CE,ROHS,FCC

Warranty:    5 years

Sec. output:

Pout(Max.)

Vout(DC)

Constant lout(DC)

1-4.2W

10-42V

100mA

1.5-6.3W

10-42V

150mA

2-8.4W

10-42V

200mA

2.5-10.5W

10-42V

250mA

3-12.6W

10-42V

300mA

3.5-14.7W

10-42V

350mA

4-16.8W

10-42V

400mA



MT-350-700-D1A1

Dimming Interface:    0-10V/1-10V

Input Voltage:    48Vdc±5% (No polarity)

Efficiency:    95%

Output Voltage:    10~42Vdc

Output Current:    350-700mA

Output Power:    3.5W-29.4W

Dimming Range:    0~100%,down to 1%

Certification:    CE,ROHS,FCC

Warranty:    5 years

Sec. output:

Pout(Max.)

Vout(DC)

Constant lout(DC)

3.5-14.7W

10-42V

350mA

4-16.8W

10-42V

400mA

4.5-18.9W

10-42V

450mA

5-21W

10-42V

500mA

5.5-23.1W

10-42V

550mA

6-25.2W

10-42V

600mA

6.5-27.3W

10-42V

650mA

7-29.4W

10-42V

700mA



Package Included:

1 Piece of Ltech For Magnetic CC LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
