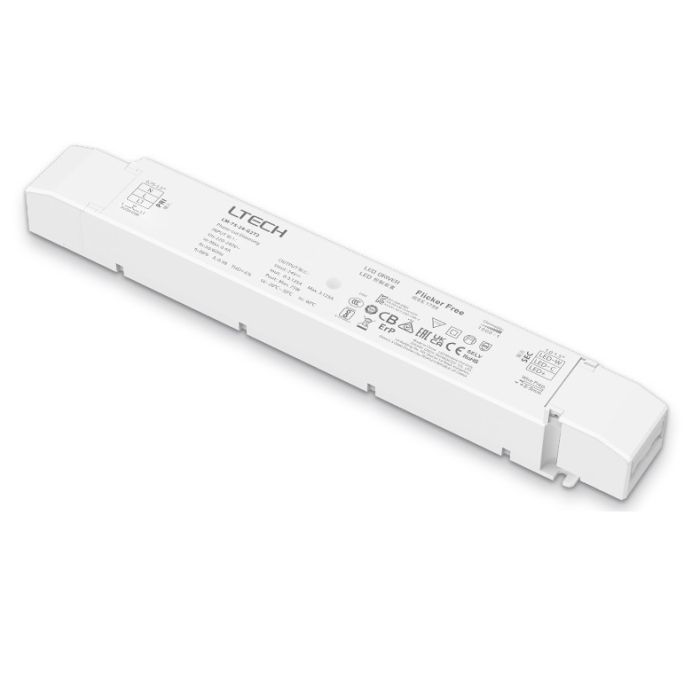

Ltech LM-75-24-G2T2 75W 24VDC Constant Voltage Triac DIM CT LED Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Ltech LM-75-24-G2T2

Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.

With soft-on and fade in function, visual more comfortable.

2 independently SELV constant voltage output channels.

Constant power design, adjust brightness and color temperature synchronously.

Dimming range: 0~100%, LED start at 0.1% possible.

0-100% flicker-free, High frequency exemption level.

High Efficient driver: efficiency 88%,PF>0.98, THD<6%

Innovative thermal management technology, intelligent power life protection.

Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.

Suitable for internal lights application for I/II/III.

Up to 50000-hour life time.

5 years warranty (Rubycon capacitor).

Rubycon capacitor

Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.

Input Voltage:    220-240Vac

Power Factor:     PF>0.98/230Vac , at full load

Efficiency:    88%

Fluctuation Level: High frequency exemption assessment level.

Output Voltage:    24Vdc

Output Current:    Max. 3.125A

Output Power:    0~75W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS

Warranty:    5 years

Package Included:

1 Piece of Ltech LM-75-24-G2T2 75W 24VDC Constant Voltage Triac DIM CT LED Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
