Ltech LM-75-12-G2A2 LM-75-24-G2A2 LM-100-24-G2A2 Led Dimming CT Driver Controller

£21.38
In stock
SKU
Ltech Constant Voltage 0/1-10V LED Dimming&CT Driver Controller
  • Buy 50 for £19.67 each and save 8%

For more 0/1-10V Controller Driver, pls check here: https://www.agoau.com/ltech-controller/0-1-10v-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoau.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

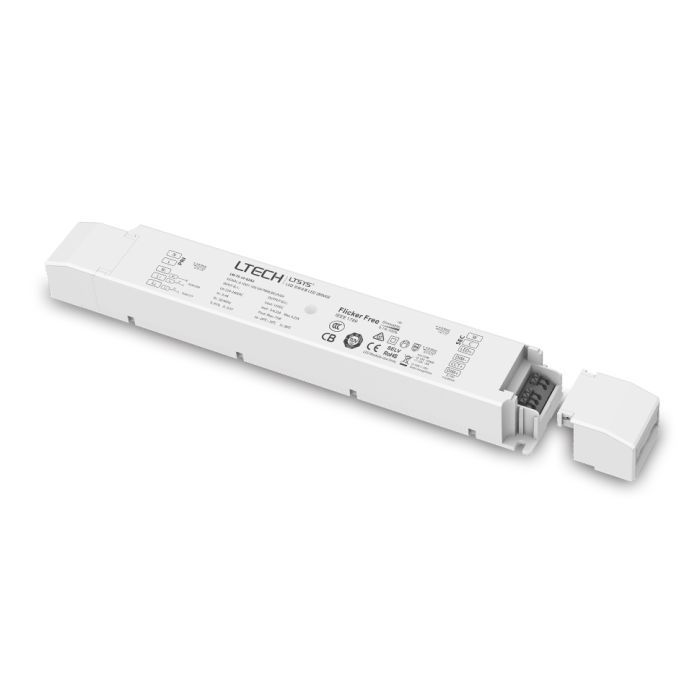

Ltech LM-75-12-G2A2 LM-75-24-G2A2 LM-100-24-G2A2 Constant Voltage 0/1-10V LED Dimming&CT Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM/CCT

0-10V DIM and color temperature adjusting driver, 2 independently SELV constant voltage output channels.

Constant power design, adjust different color temperature to keep the same brightness.

Dimming range from 0-100%, LED start at 0.1% possible.

Color temperature adjusting range: 2700-6500K

Automatic recognition of 0-10V, 1-10V input signal.

0~100% flicker-free, achieve the level of exemption assessment.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Full protective plastic housing.

Compliant with Safety Extra Low Voltage standard.

Suitable for indoor I/II/III type lamps application.


LM-75-24-G2A2
Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT

Input Voltage:    220-240Vac

Power Factor:     PF>0.97/230Vac, at full load

Efficiency:    92%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 3.125A

Output Power:    0~75W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,BIS,TUV,CE,RCM,CB,UKCA,ROHS

Warranty:    5 years


LM-100-24-G2A2
Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT

Input Voltage:    220-240Vac

Power Factor:     PF>0.98/230Vac, at full load

Efficiency:    93%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 4.17A

Output Power:    0~100W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,TUV,CE,RCM,CB,UKCA,ROHS

Warranty:    5 years

Package Included:

1 Piece of Ltech Constant Voltage 0/1-10V LED Dimming&CT Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
