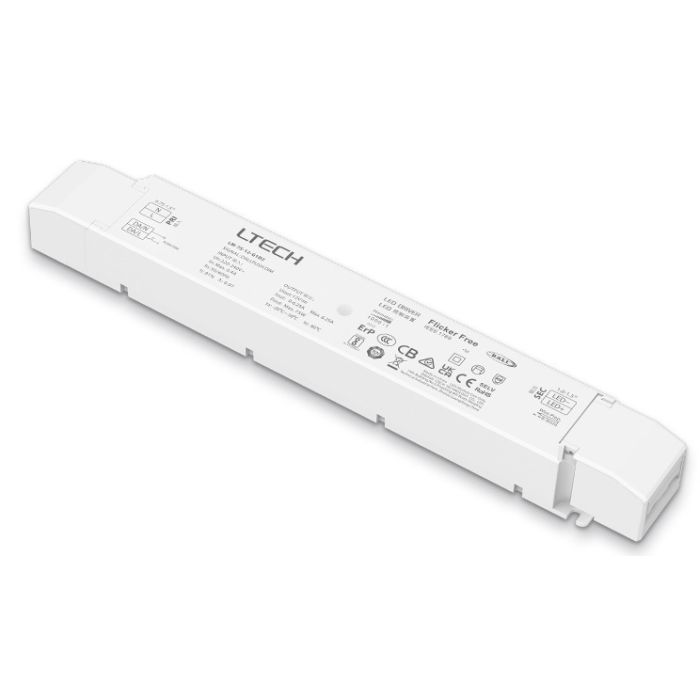

Ltech LM-75-12-G1D2 Constant Voltage 12V DALI LED Dimmable Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: DALI, Push Dim.

Dimming range from 0-100%, LED start at 0.1% possible.

0~100% flicker-free, achieve the level of exemption assessment.

DALI dimming curve: liner curve or logarithmic curve.

Over-heat / Over load / Short circuit protection, recover automatically.

Standby Power Loss < 0.5W

Full protective plastic housing.

DALI bus standard: IEC62386-101,102, 207.

Compliant with Safety Extra Low Voltage standard.

Suitable for indoor I/II/III type lamps application.

Technical Specs:

LM-75-12-G1D2

Dimming Interface:  DALI/PUSH DIM

Dimming Range: 0~100%, LED start at 0.1% possible.

Input Voltage Range:  200-240Vac ±10%, 277Vac

Power Factor:

PF>0.96/230Vac , PF>0.95/277Vac

Efficiency: >91.5%

Output Voltage Range:  12Vdc ± 0.5Vdc

Output Power Range: 1~75W

Output Current:  Max. 6.25A

Working Temperature.: tc: 80℃ ta: -30 ~ 55℃

Dimension: 292×43×30mm(L×W×H)

Packing: 296×44×33mm(L×W×H)

Weight(G.W.): 300g±10g

Package Included:

1 Piece of Ltech LM-75-12-G1D2 Constant Voltage 12V DALI LED Dimmable Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
