Ltech LM-36-12-G1A2 LM-36-24-G1A2 CV 0/1-10V LED Dimming Driver Controller
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Small size and light weight.
Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.
The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
Dimming interfaces: 0-10V(1-10V/10V PWM/RX), Push DIM.
Automatically recognize 0-10V and 1-10V input signals.
Ultra-low consumption of 0-10V ports < 0.05mA.
Dimming range: 0~100%, dimming dowm to 0.1%.
Flicker-free with high frequency exemption level in 0~100% dimming process.
With soft-on and fade-in function, bringing more comfortable visual experiences.
High-performance drivers: Effeciency 88%, PF>0.95, THD<8%.
Dimming interfaces have photoelectric isolation that are compliant with the latest safety standards and more secure and reliable.
Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the lifetime the driver.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Suitable for lamp applications of indoor I/II/III types.
Up to 50000-hour life time.

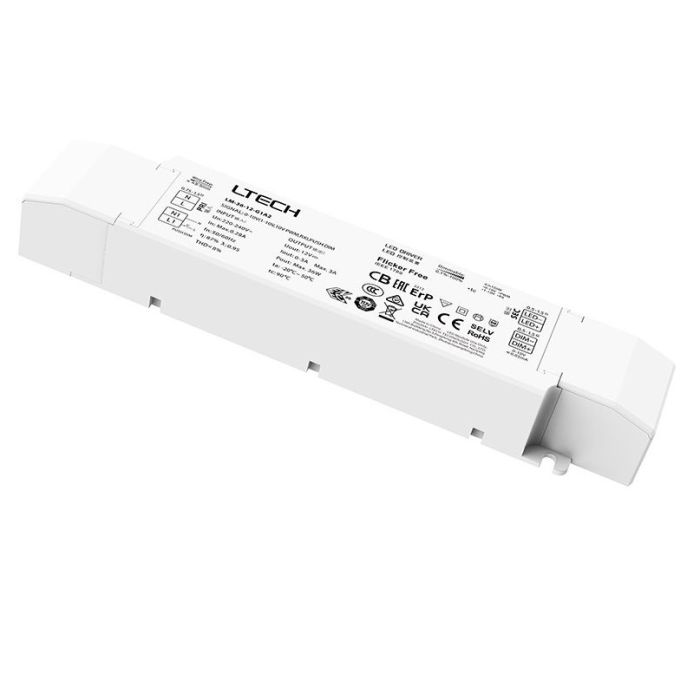

LM-36-12-G1A2
Rubycon capacitor
Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
Input Voltage: 200-240Vac / 200-280Vdc
Power Factor: PF>0.95/230Vac , at full load
Efficiency: 87%
Fluctuation Level: High frequency exemption level.
Output Voltage: 12Vdc
Output Current: Max. 3A
Output Power: 0~36W
Dimming Range: 0~100%, dimming down to 0.1%
Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS
Warranty: 5 years
LM-36-24-G1A2
Rubycon capacitor
Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
Input Voltage: 200-240Vac / 200-280Vdc
Power Factor: PF>0.95/230Vac , at full load
Efficiency: 88%
Fluctuation Level: High frequency exemption level.
Output Voltage: 24Vdc
Output Current: Max. 1.5A
Output Power: 0~36W
Dimming Range: 0~100%, down to 0.1%
Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS
Warranty: 5 years
Package Included:
1 Piece of Ltech LM-36-12-G1A2/LM-36-24-G1A2 CV 0/1-10V LED Dimming Driver Controller
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
