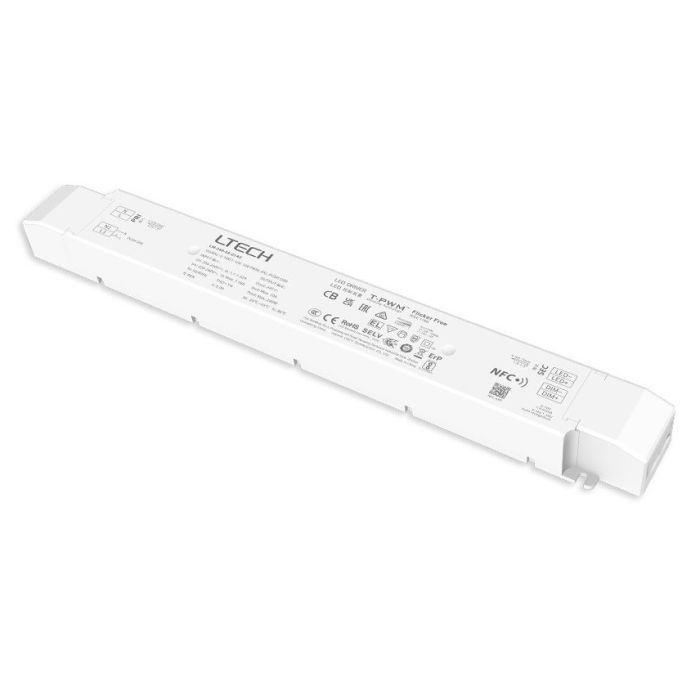

Ltech LM-240-24-G1A2 Constant Voltage NFC 0/1-10V LED Driver Controller

£58.31
In stock
SKU
Ltech LM-240-24-G1A2 Constant Voltage NFC 0/1-10V LED Driver
  • Buy 50 for £54.23 each and save 7%

For more 0/1-10V Controller Driver, pls check here: https://www.agoau.com/ltech-controller/0-1-10v-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoau.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

Ltech LM-240-24-G1A2 Constant Voltage NFC 0/1-10V LED Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.

The clamshell design and screwless type for strain-relief.

The design of dismountable end cap allows you to adjust the length of housing depending on your needs.

Change the dimming method, PWM frequency and other parameters via the APP.

Automatically recognize 0-10V and 1-10V input signal.

Ultra-low consumption of 0-10V ports <0.05mA.

With soft-on and fade-in dimming function, enhancing your visual comfort.

The whole dimming process is flicker-free with high frequency exemption level.

Dimming from 0-100%, down to 0.01%.

Comply with the EU’s ErP Directive, networked standby<0.5W.

Overheat, over voltage, overload, short circuit protection and automatic recovery.

Suitable for ClassI/II/III indoor light fixtures.

Normal service life can reach 100,000 hours.


Dimming Interface:    0-10V (1-10V, 10V PWM, RX),PUSH

DC Voltage Range:    200-280Vdc

AC Voltage Range:    198-264Vac

Input Voltage:    220-240Vac

Power Factor:     PF>0.98/230Vac (at full load)

Efficiency:    94%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 10A

Output Power:    0~240W

Dimming Range:    0~100%, down to 0.01%

Certification:    CCC,BIS,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,ERP,ROHS

Warranty:    5 years

Package Included:

1 Piece of Ltech LM-240-24-G1A2 Constant Voltage NFC 0/1-10V LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
