LM-150-24-G2A2 Ltech Led Driver 0-10V Dim CT Control Controller

£30.39
In stock
SKU
LM-150-24-G2A2 Ltech Led Driver 0-10V Dim CT Control Controller
  • Buy 50 for £27.96 each and save 8%

For more 0/1-10V Controller Driver, pls check here: https://www.agoau.com/ltech-controller/0-1-10v-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoau.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

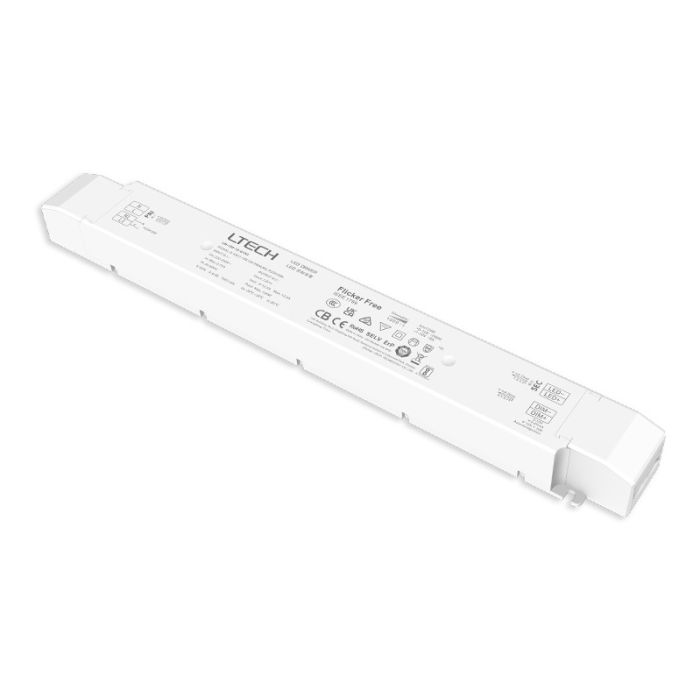

Ltech LM-150-24-G2A2 Constant Voltage 0-10V LED Dim&CT Control Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM/CCT

Dimming interface with photoelectric isolation, in line with the latest safety standards, more safe and reliable.

0-10V DIM and color temperature adjusting driver, 2 independently SELV constant voltage output channels.

Constant power design, adjust different color temperature to keep the same brightness.

Dimming range from 0-100%, LED start at 0.1% possible.

With soft-on and fade in function, visual more comfortable.

Color temperature adjusting range: 2700-6500K

Automatic recognition of 0-10V, 1-10V input signal.

0~100% flicker-free, High frequency exemption level.

High efficient driver: efficiency 93%, PF>0.98, THD<6%.

In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W

Innovative thermal management technology, intelligent power life protection.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Fully-protected plastic housing with design of dismountable end cover.

Suitable for indoor I/II/III type lamps application.


Dimming Interface:    0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT

Input Voltage:    220-240Vac 200-280Vdc

Power Factor:     PF>0.98/230Vac, at full load

Efficiency:    93%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 6.25A

Output Power:    0~150W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,ENEC,EAC,KC,TUV,RCM,CB,CE,ROHS,BIS,ERP,UKCA

Warranty:    5 years

Package Included:

1 Piece of Ltech LM-150-24-G2A2 Constant Voltage 0-10V LED Dim&CT Control Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
