Ltech LM-150-24-G1A2 LM-150-12-G1A2 CV LED Driver Dimming Controller

£28.75
In stock
SKU
Ltech LM-150-24-G1A2 CV LED Driver Dimming Controller
  • Buy 50 for £27.02 each and save 6%

For more 0/1-10V Controller Driver, pls check here: https://www.agoau.com/ltech-controller/0-1-10v-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoau.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

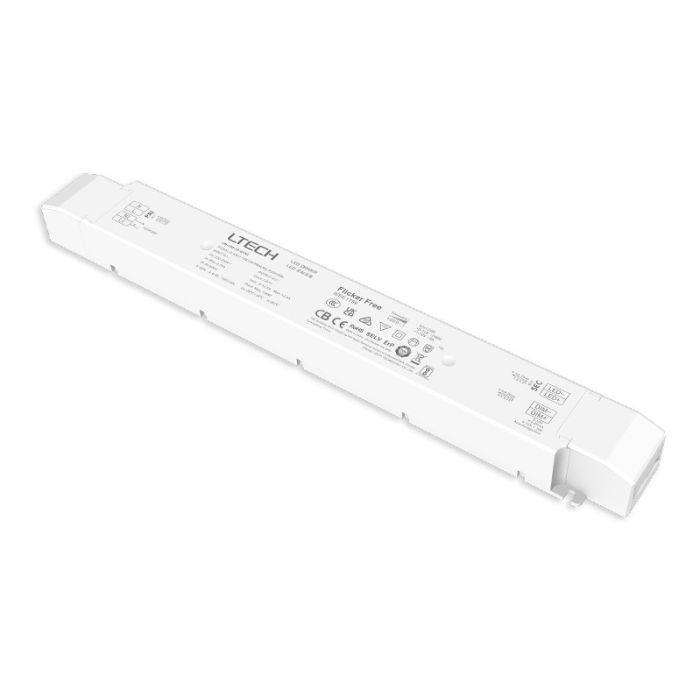

Ltech LM-150-24-G1A2 LM-150-12-G1A2 CV LED Driver Dimming Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM

Dimming range from 0-100%, LED start at 0.1% possible.

With soft-on and fade in function, visual more comfortable.

Automatic recognition of 0-10V, 1-10V input signal.

0-100% flicker-free, High frequency exemption level.

High efficient driver: efficiency 93%, PF>0.98, THD<6%.

Ultra-low consumption of 0-10V ports: < 0.05mA.

Dimming interface with photoelectric isolation, in line with the latest safety standards, more safe and reliable.

In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W

Innovative thermal management technology, intelligent power life protection.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Fully-protected plastic housing with design of dismountable end cover.

Suitable for internal lights application for I/II/III

Up to 50000-hour life time.


LM-150-12-G1A2
Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    220-240Vac 200-280Vdc

Power Factor:     PF>0.98/230Vac, at full load

Efficiency:    92%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    12Vdc

Output Current:    Max. 12.5A

Output Power:    0~150W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,EAC,KC,TUV,RCM,CB,CE,ROHS,BIS,ERP,UKCA

Warranty:    5 years


LM-150-24-G1A2
Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    220-240Vac 200-280Vdc

Power Factor:     PF>0.98/230Vac, at full load

Efficiency:    93%
Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 6.25A

Output Power:    0~150W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,EAC,KC,TUV,RCM,CB,CE,BIS,ERP,ROHS,UKCA

Warranty:    5 years

Package Included:

1 Piece of Ltech LM-150-24-G1A2/LM-150-12-G1A2 CV LED Driver Dimming Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
