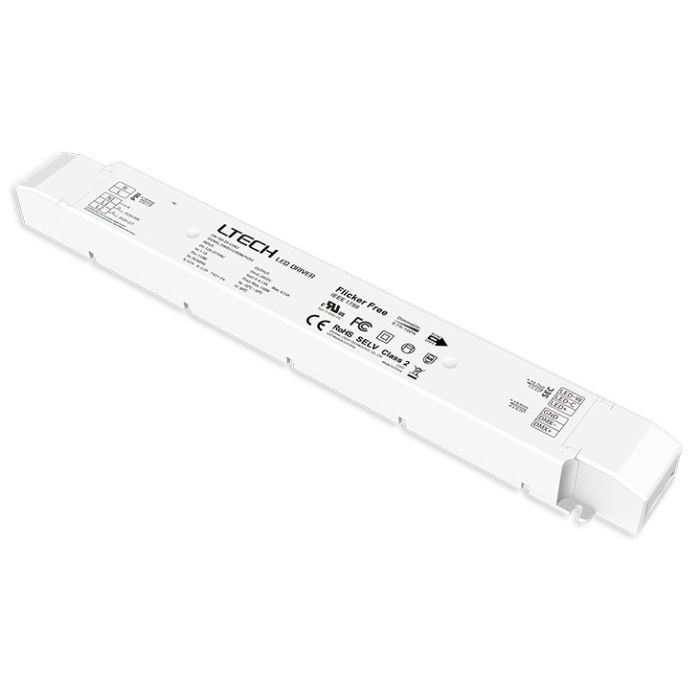

Ltech LM-100-24-U2M2 US Standards Constant Voltage DMX DIM CT Driver

£28.26
In stock
SKU
Ltech LM-100-24-U2M2 US Standards Constant Voltage DMX DIM
  • Buy 50 for £26.28 each and save 7%

For more DMX512/RDM Controller Driver, pls check here: https://www.agoau.com/ltech-controller/dmx512-rdm-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoau.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

Ltech LM-100-24-U2M2 US Standards Constant Voltage DMX DIM CT Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Small size and light weight.

The housing is made from V0 flame retardant PC materials that SAMSUNG/COVESTRO uses.

The clamshell design and screwless type for strain-relief.

The design of dismountable end cap allows you to adjust the length of housing depending on your needs.

Adopt constant power program design and it keeps the same brightness in color temperature adjustment.

Color temperature range: 2700-6500K.

With soft-on and fade-in dimming function, enhancing your visual comfort.

High frequency exemption level.

Dimming from 0~100%, down to 0.1%.

2-CH SELV output channel with common anode.

Support RDM remote device management protocol.

The secure and reliable design for signal isolation.

Innovative thermal management technology intelligently protects the power life intelligently.

Overheat, over voltage , overload, short circuit protection and automatic recovery.

Suitable for internal lights application for I/II/III type.

Up to 50000-hour life time.

Rubycon capacitor

Dimming Interface:    DMX/RDM, Push DIM/CCT

Input Voltage:    120-277Vac

Power Factor:     PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)

Efficiency:    93%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 4.17A

Output Power:    0-100W

Dimming Range:    0~100%, down to 0.1%

Certification:    FCC,CE,ROHS,UL

Warranty:    5 years

Package Included:

1 Piece of Ltech LM-100-24-U2M2 US Standards Constant Voltage DMX DIM CT Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
