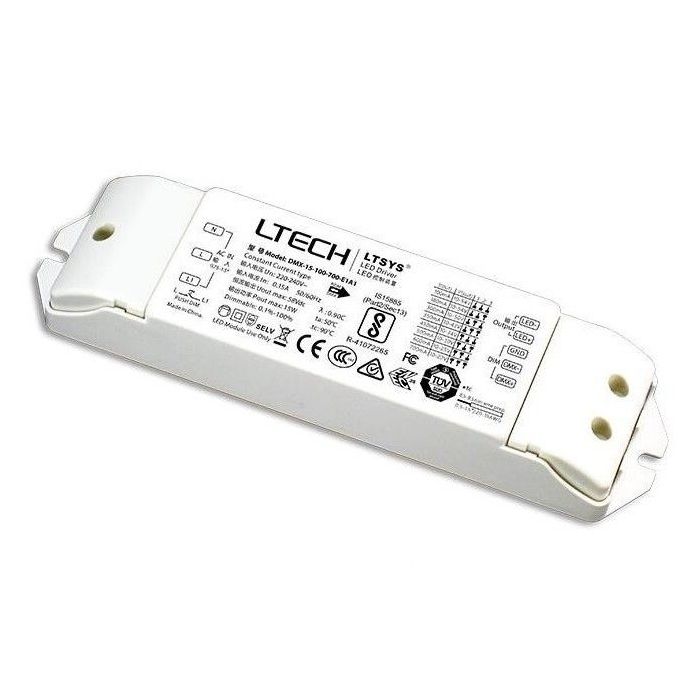

Ltech DMX-15-100-700-E1A1 15W 100-700mA CC DMX Driver
LTECH Intelligent dimmable led driver have excellent performance:
Fully Digital circuit design, excellent performance and long working life
PWM digital dimming, maintain the best LED’s CRI(color rendering index)
Standard logarithmic dimming curve, the human eye visual feel more comfortable
60000:1 wide dimming range, 0-100% full dimming range，LED start at 0.1% possible
Power factor>0.99, Efficiency>85%, THD(Total Harmonic Distortion)<10%
Wide rang voltage+optional arbitrary current, workable with led lights at different power
Short circuit / Over-temperature /Over load protection
Current consistent in multi LED driver working, balanced light
Class 2 security isolation power supply,full protective plastic housing
Compliant with SELV(Safety Extra Low Voltage) standard
Product Parameter
Model: DMX-15-100-700-E1A1
Dimming interface: DMX512/RDM, Push Dim
Dimming range: 0-100%
Input voltage: 220-240Vac ±10%
Efficiency: >83%
Current Accuracy: ±3%
Output voltage: 10-54Vdc
CC output: 100mA-700mA
Sec. output:
Pout(Max.) Vout(DC) Constant lout(DC)
Package Content:
1 Piece of DMX-15-100-700-E1A1 DMX Dimming Driver
1 Piece of Manual
CE and RoHS approved
