Leynew IR12BMDIMMER 12-key Control Decoder Infrared Dimmer Led Controller

Be the first to review this product

£2.42

In stock

SKU

Leynew IR12BMDIMMER 12-key Control Decoder

For more Leynew Controller, pls check here: https://www.agoau.com/leynew-controller.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card. We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

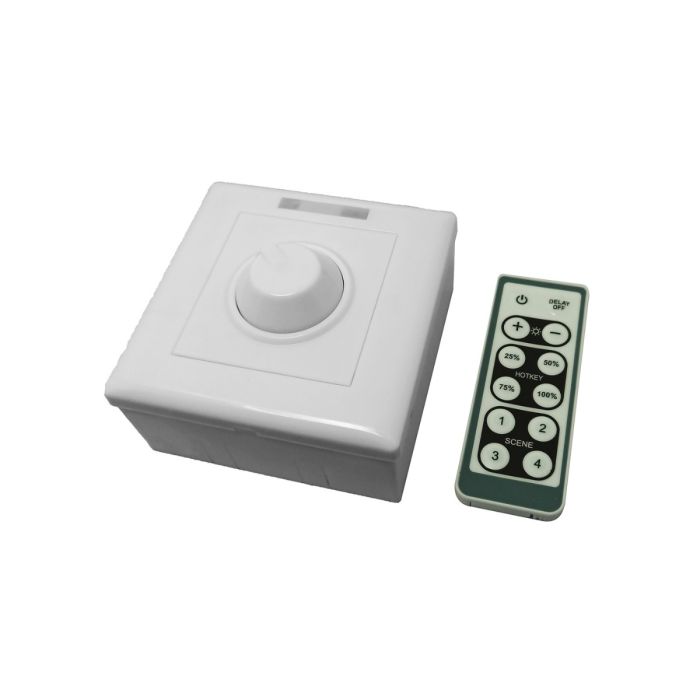

Leynew IR12BMDIMMER 12-key Control Decoder Infrared Dimmer Led Controller

12-key Infrared Dimmer IR12BMDIMMER

12-key Infrared Dimmer Is a dedicated intelligent LED lighting dimmer controls, Adopt the most

advanced PWM (Pulse Width Modulation) digital dimming technology, You can manually adjust the

brightness stepless. IR wireless remote control can also be used to remote dimming; Standards for

commercial or home a low 86-type switch socket box installation, LED Dimmer switches can be installed

to meet the light needs of commercial or home lighting in the different time and different environments,

To extend the LED life span, energy saving; power and low-power LED lighting can be dimmin. Is used to

control a variety of led lamps as the light source, For instance, point source of light, flexible light strip,

wall washer lamp, glass curtain wall light and so on; With competitive price, easy wiring, simple to use etc.;

Through the infrared remote control and dimmers on the knob to adjust brightness; Gray level 255;

with custom features, delay shutdown function and a fixed grayscale output.

Technical parameters

Working temperature: -20-60 ℃

Supply voltage: 5V, 12V~24V <optional> (for orders specify voltage)

Output: 1 channels

Controller dimension: L87×W87×H42mm

Remote dimension: L86×W33×H7mm

Packing size: L160ΧW95ΧH51mm

Net weight: 145g

Gross weight: 180g

Static power consumption: <1 W

Output current: <8 A

Output power: 5 V: <40W, 12V: <96W, 24V: <192W

Package Included:

1 Piece of Leynew IR12BMDIMMER 12-key Control Decoder Infrared Dimmer Led Controller

CE and RoHS approved
