Features
Support DMX512 to DALI / DALI to DMX512 signal conversion;
Support DIP switch selecting DMX initial address;
Support DIP switch selecting number of DALI channel;
Supports maximum 64 DALI signal outputs;
Support group control and scene control of DALI device, the function is
effective under mode of DALI to DMX signal.
Technical parameters
Working temperature: -20-60℃
Supply voltage: DC12V-48V
Input signal: DALI/DMX512
Output signal: DMX512/DALI
Statical power consumption: <1W
Connection mode: 4pin green connection pillar for DALI signal, RJ45 interface for DMX signal.
External dimension: L150mm*W78mm*H26mm
Packing dimension:L180*W108*H55mm
Net weight:209 g
Gross weight:277g
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting
control protocol BUS, which adopt to Manchester codes of digital transmission, with a whole
and grouping dimming, addressing dimming, inquire lamps and lanterns sates, and other
powerful dimming function. Compared with the 0-10V analogue dimming, it’s more precise
dimming, addressable, stable, focus control, easy to installation and so on.
DMX512 is first by USITT (American theater technology association) develop and become
from the console with standard digital interface control dimmers way. It has simple, reliable, flexible features.

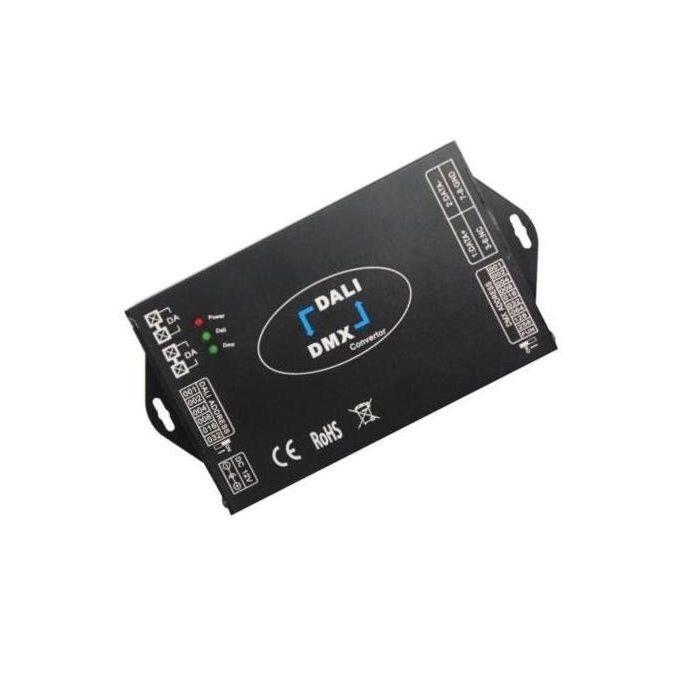

The product can achieve conversion between standard IEC62386 DALI dimming signal and widely
used DMX-512 standard signal, realize DMX module control by DALI master, and also can realize DALI
device control by DMX master, realize 2 kinds protocol seamless transition.
Package:
1 Piece of LED Controller
1 Piece of User's manual
6.Typical Application
DALI to DMX512:
DMX512 to DALI:
