Specification:
Supply Voltage: DC5-24V
Output Type: TTL/SPI
IC Control Quantity: 512pcs
Working Temperature: -20°C – 60 °C
Dimensions ( L X W X H ): about 98mm x 62mm x 23mm
Product weight: about 105g

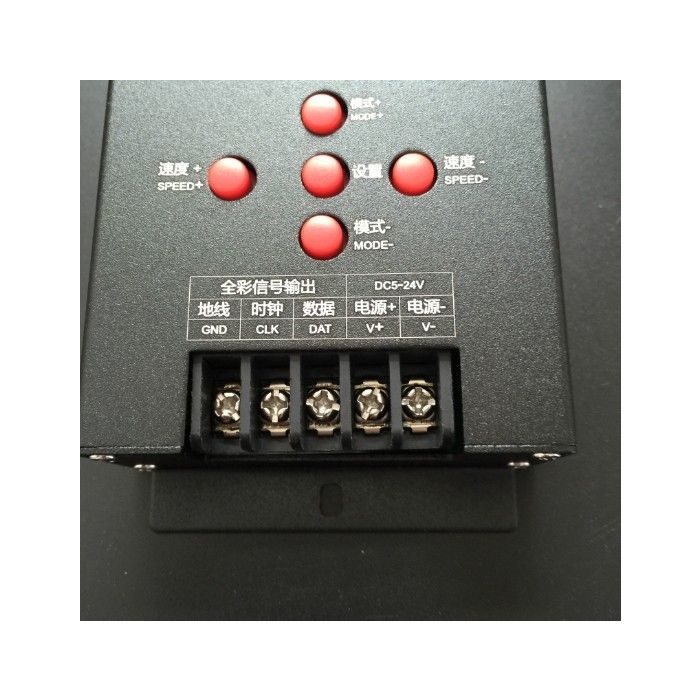

Connection Instructions:
1. Connect led light signal wire first,Generally single wire IC(TM1803/TM1804/TM1809)
connect DAT and GND,Double wire IC(LPD6803,SM16716)connect DAT,CLK and GND.
2. "Power+"Switching power supply DC12V positive,"Power+" Switching power supply
DC12V negative.
3. Display when power supple:P-001 P: represent Mode 001: represent Mode value,Total 36 mode.
Setting Instructions:
1. Press the setting , Into "IC mode choose" state,Press "mode+"or"mode-"can select different IC
which IC model digital tube can show,Able been controlled IC model:LPD6803 LPD1109 LPD1882
LPD1886 P9813 SM16716 TM1803 TM1903 TM1829 WS2811 WS2801;
2. Then press the setting again, then set IC quantity, Press"mode+"or"mode-"add or reduce IC
quantity,Digital tube show:L-001, Max IC quantity: 512pcs;
3. Press the setting once more to save Settings information,the interface back to mode selection:
P-0xx;
4. Change mode: Directly press:"mode+"or"mode-", Interface show: P-0XX corresponding value
will increase or decrease;
5. Adjust the speed of change: Directly press:"mode+"or"mode-", Interface show:SP-XXX
corresponding value will increase or decrease
Package Included:
1 Piece of LED T-500 Pixel Controller
1 Piece of User's Manual
CE and RoHS approved
