We supply high quality Skydance Led products to worldwide for many years.
Skydance's products are widely used in various dimming projects such as buildings, hotels, offices, museums,
public spaces, outdoor lighting, etc.
These projects include lighting control functions such as dimming, color tempering, adjusting RGB, adjusting
RGBW, zoning and networking, and scene storage, among others.
They have been used in prominent projects, such as China Central Television (CCTV) Headquarters, Lausanne
Opera House, Guangzhou West Tower, Guangzhou Cultural Oriental, and Macau Galaxy Hotel , to name a few.
We have helped our customers control smart lights, maximize energy use, drive overall efficiency and deliver new experiences.

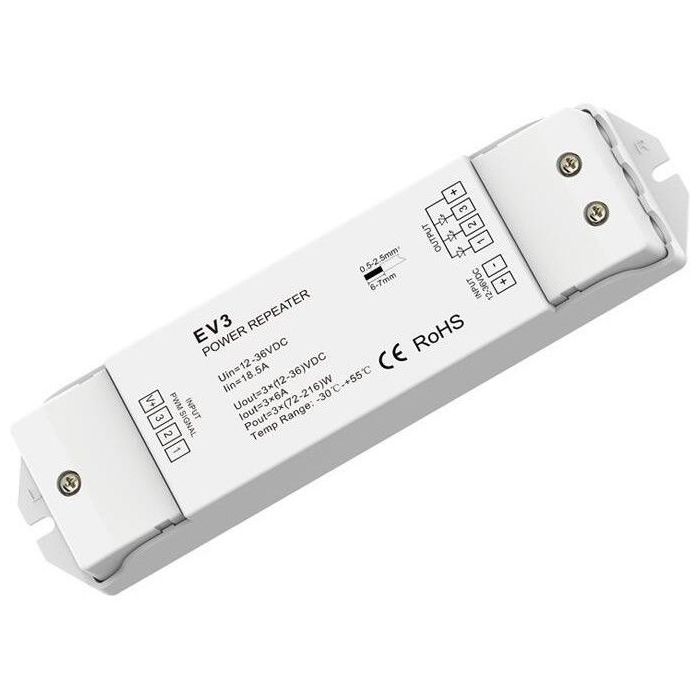

The EV3 is a 12-36VDC constant voltage LED power repeater with 3 channel, maximum 6A per channel output,
which is designed to expand power output and receive PWM signal control. By adding one more power repeater,
the controller can control more LEDs, and unlimited power repeaters can be connected together to expand power
output unlimitedly theoretically
Feature
1.12-36V constant voltage power repeater.
2.3 channel, 6A per channel.
3.To receive PWM signal control.
4.Power repeater in series or in parallel to expand output unlimitedly.
Technical Parameters
Input voltage: 12-36VDC
Load current: 3CH, 6A/CH
Output power: 3 x (72-216)W
Working temperature: -30℃~55℃
Product size: L175×W45×H27mm
Net weight: 110g
Package Content:
1 Piece of EV3 Led Controller Skydance Lighting Control System Power Repeater CV 3CH 12-36V
1 Piece of instruction User's Manual
CE and RoHS approved
