Euchips EUP40A-1H24V-1 40W 24V DC 0/1-10V CV Led Driver

Short Description:

Item No.:EUP40A-1H24V-1

Input Voltage:220-240

Output Current:1.67A*1CH

Output Voltage:24

Output Power:40

Dim Mode:1-10V

G.W.:225

Size:137*82*31

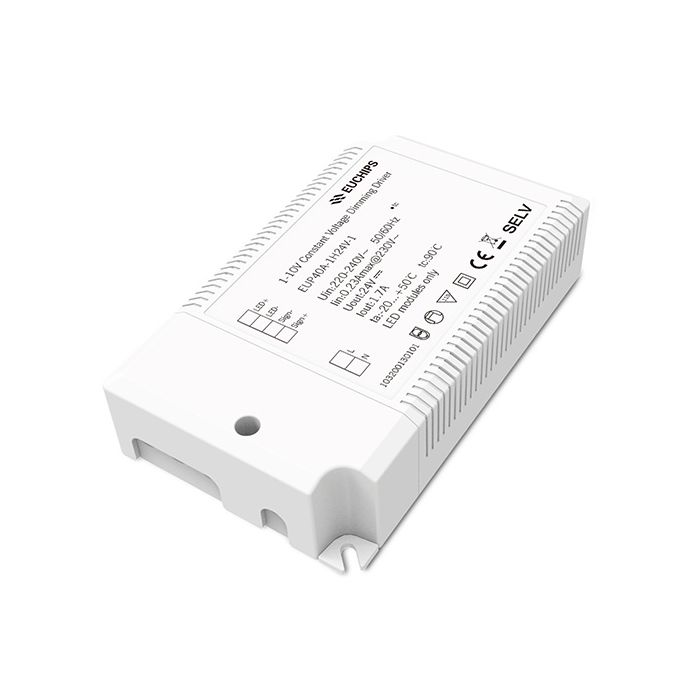

40W 24VDC 1-10V Constant Voltage Driver EUP40A-1H24V-1

EUP40A-1H24V-1 is a constant voltage mode output LED driver. This driver can be

controlled by external signal (1-10V active signal, adjustable resistance and PWM signal)

to achieve a smooth dimming effect.

Feature

1. Single channel constant voltage output,1.7A Max

2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)

3. Built-in active PFC function

4. Dimming range of 0-100%, and dimming effect smooth, no flicker

5. 100% output when no dimming signal input, can be used as normal power supply

6. Over load protection; Over temperature protection; Short circuit protection

7. Suitable for indoor LED lighting application, such as LED strips, spot light,wall washer,and so on

Package Included:

1 Piece of Euchips EUP40A-1H24V-1 40W 24V DC 0/1-10V CV Led Driver


CE and RoHS approved
