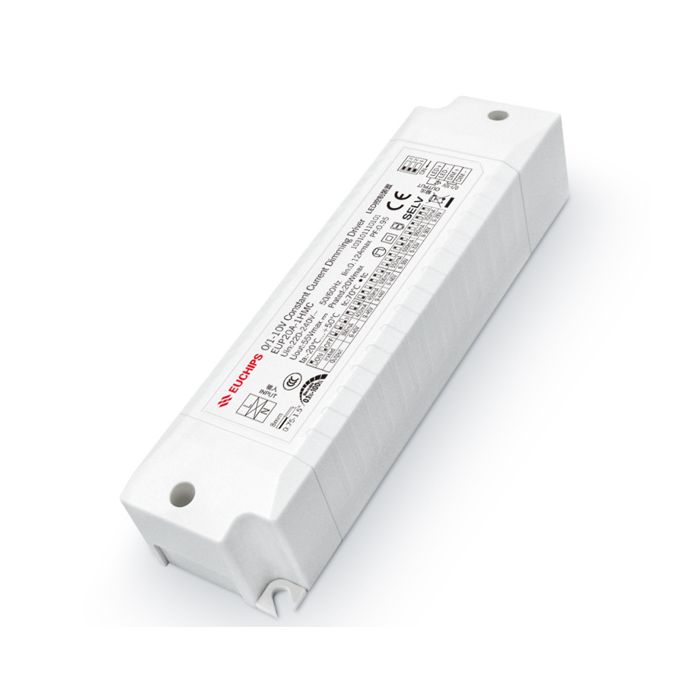

Euchips EUP20A-1HMC 20W 350-700mA 1ch 0/1-10V CC Led Driver

£8.56
In stock
SKU
Euchips EUP20A-1HMC 20W 350-700mA 1ch 0/1-10V CC

For more Euchips LED Controller, pls check here: https://www.agoau.com/euchips-led-controller.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

Euchips EUP20A-1HMC 20W 350-700mA 1ch 0/1-10V CC Led Driver

Short Description:

Item No.:EUP20A-1HMC

Output Power:20W

20W 350~700mA*1ch 0/1-10V CC Driver EUP20A-1HMC

EUP20A-1HMC is a constant current output mode LED driver. The output current can be easily set via

DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal ,

or adjustable resistance to achieve the smooth dimming effect.

Features

Single channel output, output current level selectable by DIP S.W.

Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)

High input voltage of 220VAC ~ 240VAC

High efficiency up to 85%

Built-in active PFC function

100% output when no dimming signal input, can be used as normal power supply

Dimming effect smooth, no flicker

Protections: Short circuit, over load, over Voltage

Suitable for indoor LED lighting application, such as down light, spot light, and so on

Package Included:

1 Piece of Euchips EUP20A-1HMC 20W 350-700mA 1ch 0/1-10V CC Led Driver


CE and RoHS approved
