Euchips EUP10A-1HMC-1 10W 120mA 180mA 240mA 300mA 1ch 0/1-10V CC Led Driver

£4.52
In stock
SKU
Euchips EUP10A-1HMC-1 10W 120mA 180mA 240mA 300mA

For more Euchips LED Controller, pls check here: https://www.agoau.com/euchips-led-controller.html

If you need COB Led Strip, pls check here: https://www.agoau.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoau.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoau.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agoau.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoau.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoau.com

Euchips EUP10A-1HMC-1 10W 120mA 180mA 240mA 300mA 1ch 0/1-10V CC Led Driver

Short Description:

Item No.:EUP10A-1HMC-1

Output Power:10W

Dim Mode:0/1-10V

10W 120/180/240/300mA*1ch 0/1-10V CC Driver EUP10A-1HMC-1

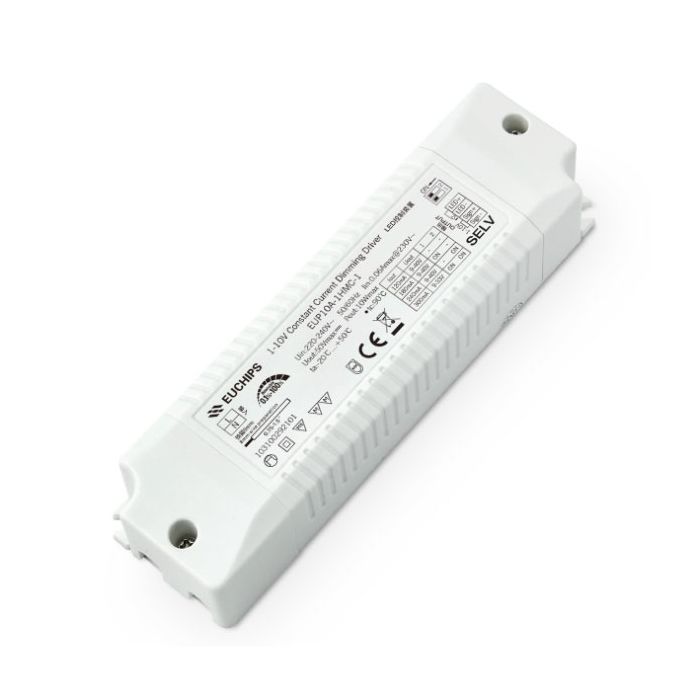

EUP10A-1HMC-1 is a constant current output mode LED driver. The output current can be

easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC

active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.

Features

Single channel output, output current level selectable by DIP S.W.

Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)

High input voltage of 220VAC ~ 240VAC

High efficiency up to 85%

Built-in active PFC function

100% output when no dimming signal input, can be used as normal power supply

Dimming effect smooth, no flicker

Protections: Short circuit, over load

Suitable for indoor LED lighting application, such as down light, spot light, and so on

Package Included:

1 Piece of Euchips EUP10A-1HMC-1 10W 120mA 180mA 240mA 300mA 1ch 0/1-10V CC Led Driver


CE and RoHS approved
