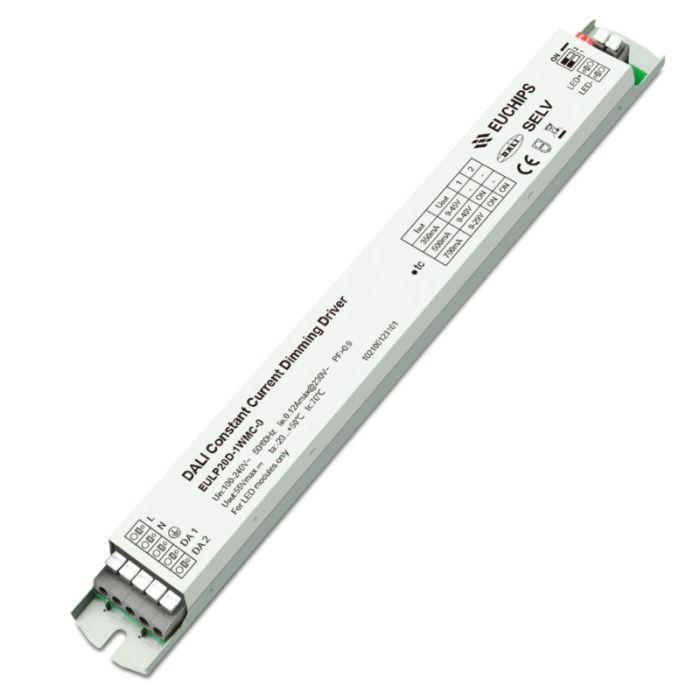

Euchips EULP20D-1WMC-0 20W 350mA 500mA 700mA 1ch DALI CC Led Driver

Short Description:

Item No.:EULP20D-1WMC-0

Input Voltage:100-240VAC

Output Current:350/500/700mA

Output Power:20W

Dim Mode:DALI /Touch DIM

G.W.:230g

Size:280*30*21mm

20W 350/500/700mA*1ch Constant Current DALI Driver EULP20D-1WMC-0

EULP20D-1WMC-0 is a 20W AC/DC constant current mode output LED driver featuring the

multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386.

EULP20D-1WMC-0 can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.

Feature

1. Single channel output, output current level selectable by DIP S.W.

2. Meet DALI protocol IEC 62386

3. Support Touch DIM function

4. Wide input voltage of 100VAC ~ 240VAC

5. High efficiency up to 83%

6. Built-in active PFC function

7. Liner dimming mode,dimming effect smooth, no flicker

8. Protections: Over load, short circuit, over voltage

9. Suitable for indoor LED lighting application, such as down light, panel light, tri-proof light, and so on

Package Included:

1 Piece of Euchips Led Driver


CE and RoHS approved
