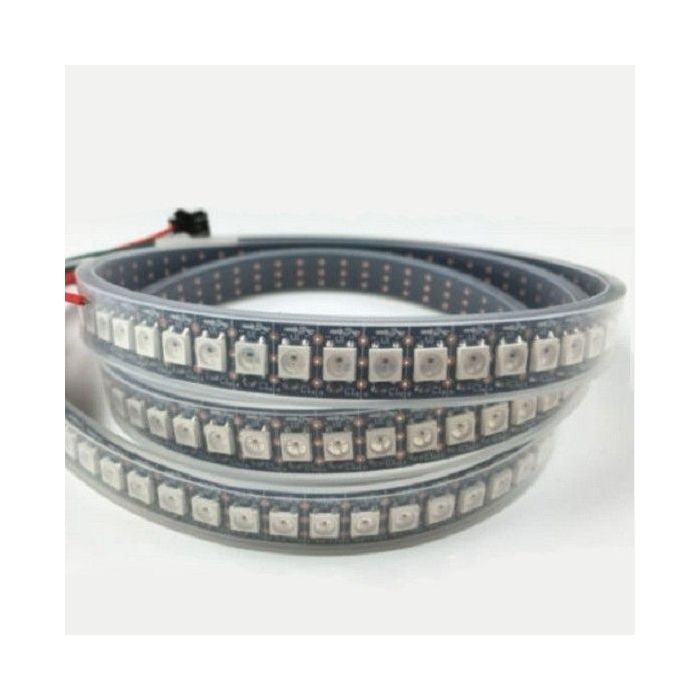

DC 5V 1M 144LEDs APA102 RGB LED Strip 5050 Addressable Pixel Light
Specification:
Input Voltage: DC5V
IC Model: APA102 IC chip
LED Type: 5050 SMD LED
LED Quantity: 144LEDs/m, 144leds/roll, every LED is cuttable, each LED is separately controlled
Pixels Qty: 144Pixels/m, 144pixels/m
Emitting Color: digital full color RGB, can be adjusted
Max Power: 44W/m, 220W/roll
PCB Color: Pls Choose, White or Black
PCB Width:12mm
View angle: 120degree
Gray Scale: 256
Protection Rate: Pls Choose
IP30 Non-Waterproof with 3M Tape on the back
IP65 Waterproof Dripping Glue with 3M Tape on the back
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Product Features:
1.The control principle: an IC control an LED form a loop (a), the controller IC on the FPCB through the control
circuit inside the control to control the LED lights change different effects; such as flashing, chasing, jumping, Happy
clockwise, counterclockwise Happy, Happy monochrome, color Happy, single chase from start to finish, running water,
simulated lightning; changing effect this section is not limited to the current light bar controller built-in 94 kinds of effects
can be based on customer needs , write your own; arranged in the form of screen can display, text, letters, pictures,
animations, and so on.
2.Environmental safety: high quality highlight SMD 5050 LED. With small power consumption, resulting in less heat, no
glare, impact resistance and other characteristics. Low voltage DC 5V power supply, high security and reliability.
3.Color can be varied by the controller needs to be adjusted according to the customer.
4.Long life: average life expectancy of 50,000 hours.
5.Cutting, welding facilitate freedom: each group of LED to form a loop, you can cut off any tangent meet customer
requirements and demand for welding various lengths of light bar along the top.
6.Soft: A soft FPCB board as a substrate, can butt, bending, cutting, and easily fixed to unsmooth surface.
7.Light, thin: suitable for installation in narrow space inside
Package Include:
1 Roll of DC 5V 1M 144LEDs APA102 RGB LED Strip 5050 Addressable Pixel Light
CE and RoHS approved
