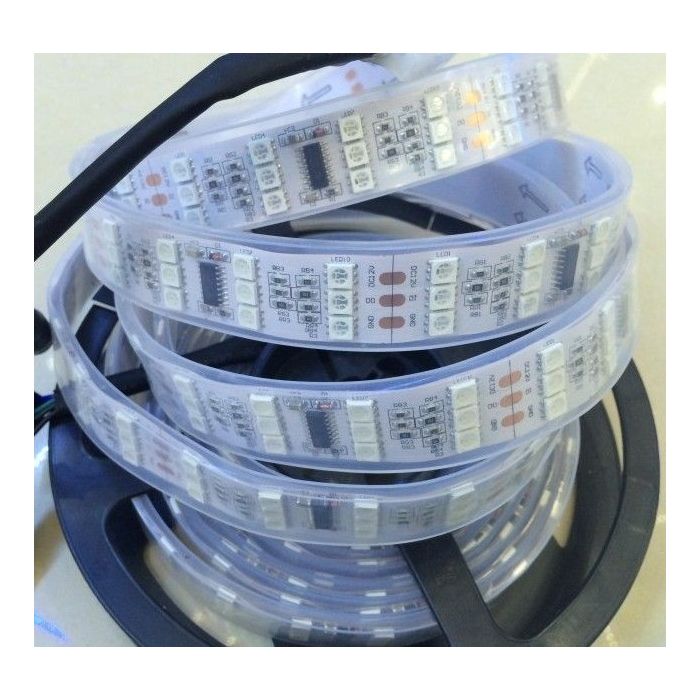

DC 12V 5M 720LEDs 5050 RGB 3 Rows TM1812 Addressable LED Light Strip
Flexible RGB LED strip
Operating Voltage: DC 12V
Driver IC: TM1812
IC Quantity: 12 IC/meter (1 IC drives 12led chip)
LED type: RGB 3-IN-1 SMD 5050 RGB LED
LED Quantity: 144leds/meter,720leds/roll, each 3 leds(each row) separately controlled
Light Color: RGB Multicolor
Power Consumption: 34.56watt/meter, 172.8watt/roll
Pixels: 48/meter
Pitch: 20.83mm(1000/48)
Grey scale: 256
Bits/color: 8-bits/each color;total 24 bits for RGB
FPC size: Width: approx. 20mm, High: approx. 4mm
FPC color: white
Protection Rate: Pls Choose
IP30 Non-Waterproof with 3M Tape on the back
IP65 Waterproof Dripping Glue with 3M Tape on the back
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Weight: approx 520g
133 different changing patterns and changing speeds
Viewing angle: ≥120°
Lifespan: MTBF≥50000hrs
Application: building decoration, LED diplay.
Package Included:
1 Roll of 5 Meters (16.4 Feet) DC 12V 5M 720LEDs 5050 RGB 3 Rows TM1812 Addressable LED Light Strip
CE and RoHS approved
