DC 12V 24V DMX512 Decoder 3 Channels DMX Controller Driver for RGB LED Strip Light

Be the first to review this product

£11.22

In stock

SKU

DC 12V 24V DMX512 Decoder 3 Channels Controller for RGB

DC 12V 24V DMX512 Decoder 3 Channels DMX Controller Driver for RGB LED Strip Light is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DC 12V 24V DMX512 Decoder 3 Channels DMX Controller Driver for RGB LED Strip Light

Specifications

Input Power：DC12V-DC24V

Output Current：4A per channel（total current: 12A）

Output Power：144W(12V) 288W(24V)

Brightness Control ：256 scales

DMX Address：3 channels

DMX512 Standard：DMX512

Product Dimension：166×67×41（mm）

Casing Size：185×85×59（mm）

Weight：0.85lb

Description:

This DMX common controller adopts the advaned micro control unit, it receives standard DMX-512 digital control singal

and transformed it into PWM signal for driving LED; You could connect DMX module with DMX digital console

to achieve dimming or various changes in procedures.

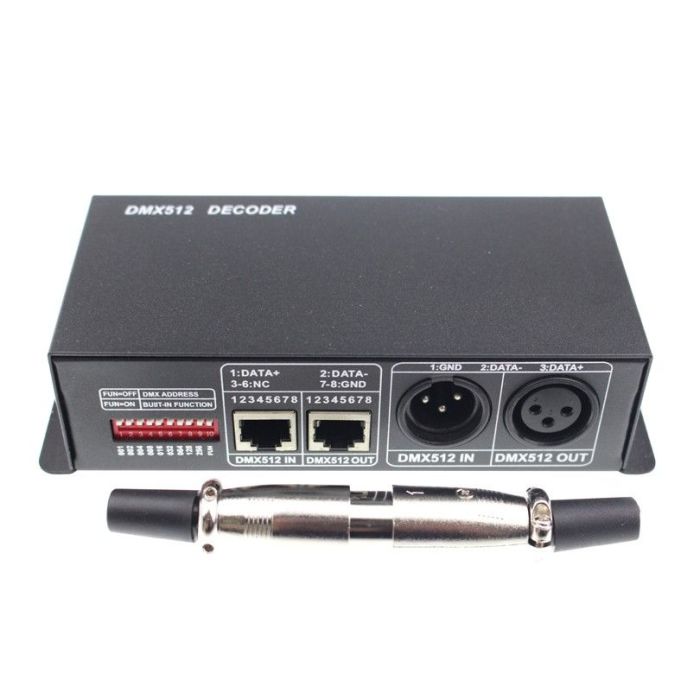

This is our new model with RJ-45 and 3-Pin XLR Jacks for DMX in and out.

You can mix and match the connections XLR in and RJ-45 Out or just use one or the other.

It also has built-in testing and stand alone features.

Simply turn on the last dip switch labeled 'fun' to enable stand alone mode (when you don't have a DMX

single or for testing). You can set the color or fade/flash modes and adjust the speed by using different

combinations of the dip switches.

Basic Functions

1. 256 scales of smooth brightness adjusting.

2. User addressable DMX interface-with easy dip-switch settings and testing modes.

3. High power output, 3 output channels.

4. DMX pass through and in/out connector for daisy chain configurations.

Includes solder on Male+Female DMX 3pin Jacks

Package Include:

1 Piece of DC 12V 24V DMX512 Decoder 3 Channels DMX Controller Driver for RGB LED Strip Light

CE and RoHS approved
