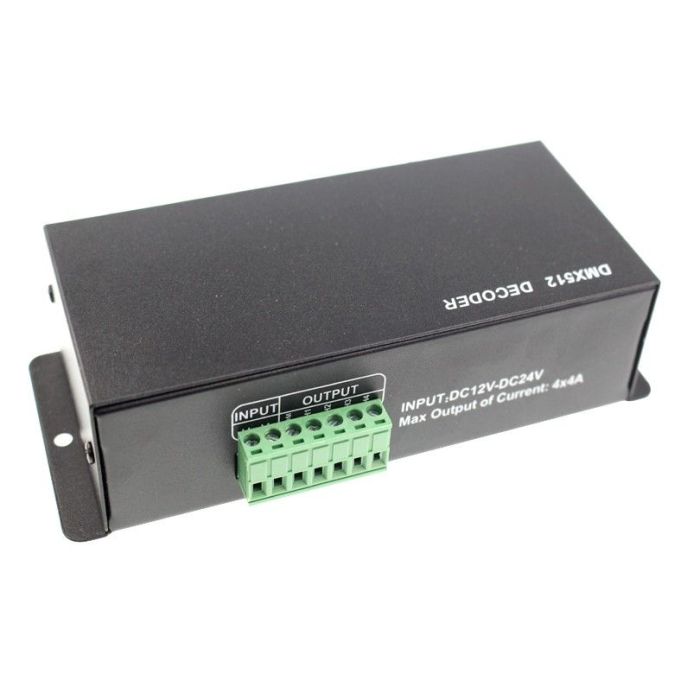

4 Channel DMX Dimmer Driver 12V 24V 4CH RGBW DMX512 Decoder LED Controller4 Channel DMX Dimmer Driver 12V 24V 4CH RGBW DMX512 Decoder LED Controller
Summarization
DMX Decoer adopts the advanced micro control unit, it receives standard DMX-512 digital control signal
and transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital
console to achieve dimming or various changes in procedures.
Technical Parameters
Working temperature: -20-60 ℃
Supply voltage: 12～24VDC
Output Current：4A per channel（total current: 16A）
Static power consumption: <1W
Output current: each channel 4A
Output Power：144W(12V) 288W(24V)
External dimension: L165*W68*H40（mm）
Packing size: L180*W95*H60（mm）
Package Include:
1 Piece of 4 Channel DMX Dimmer Driver 12V 24V 4CH RGBW DMX512 Decoder LED Controller
CE and RoHS approved
