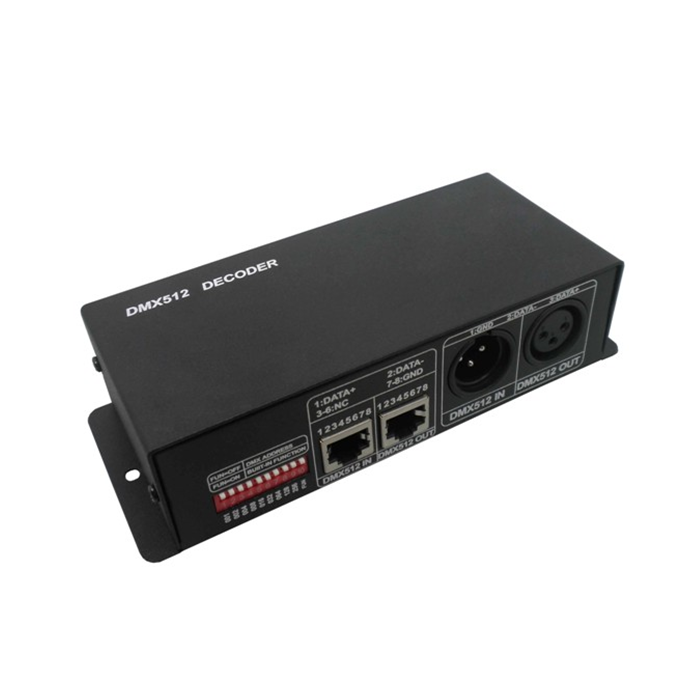

DC 12～24V 4 Channel Leynew DMX LED Controller LN-DMXTCON-4CH-LV
Summarization
DMX Decoer adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.
Technical Parameters
Working temperature: -20-60 ℃
Supply voltage: DC 12～24VDC
Output: 4 channel
External dimension: L165*W68*H40（mm）
Packing size: L180*W95*H60（mm）
Net weight: 320g
Gross weight: 355g
Static power consumption: <1W
Output current: each channel 4A
Output power: 12V:<192W, 24V:<384W
Package Include:
1 Piece of DC 12～24V 4 Channel Leynew DMX LED Controller LN-DMXTCON-4CH-LV
1 Piece of Product Manual
CE and RoHS approved
