Specifications
Automatically adapt to AC85-265V working voltage
High voltage input, isolation power supply,can be used with dimming power;
Standard 86-style socket, easy to install;
Touch panel adjustment,fashion design,simple to use;
Two channels dimming signal output;
25%, 50%, 75%,100%,4 brightness shortcuts and 2 DIY modes for fast dimming;
Power loss memory function.
Basic Features
Model:P1- 010V/P1- PWM5V/P1- PWM10V
Input Voltage:AC85-265V
Output Votage:AC85-265V
Max Output Current:10A
Output Signal:0/1-10VAnalog Signalx2CH/PWM5V Signalx2CH/PWM10V Signalx2CH
Working Temp:-20°C-55°C
Dimension:L86×W86xH36(mm)
Weight(G.W):190g
Package Included:

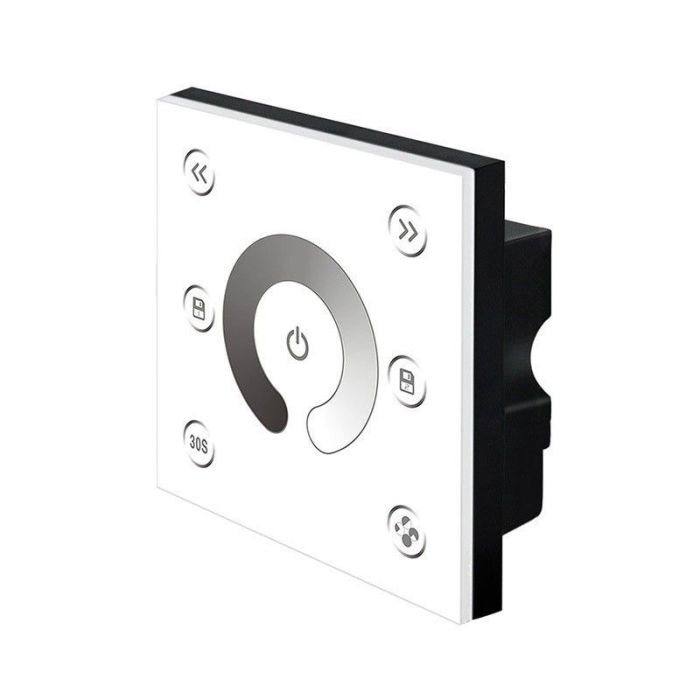

1 Piece of Bincolor 2CH Led Controller Wall Touch Panel Signal Dimmer
CE and RoHS approved
