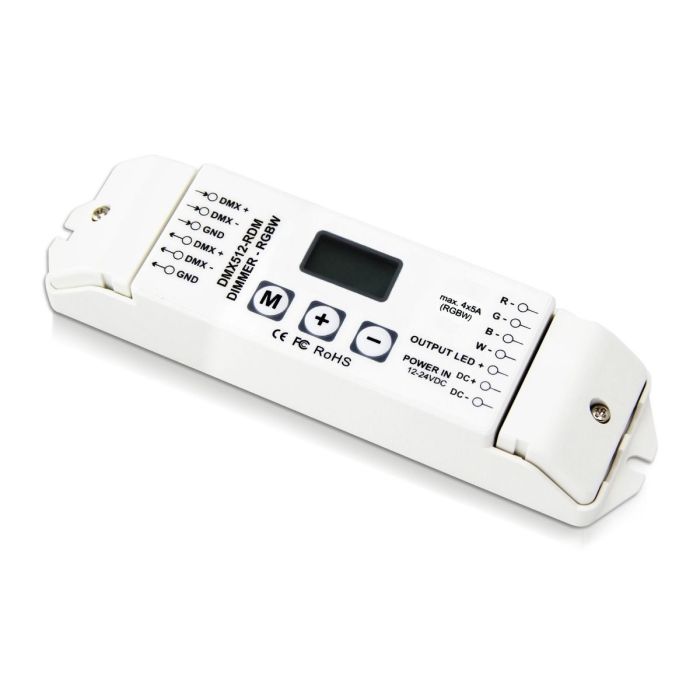

Bincolor BC-844 DC 12V 24V DMX512-RDM constant voltage decoder controller

Be the first to review this product

£25.85

In stock

SKU

Bincolor BC-844 DC 12V 24V DMX512-RDM constant voltage decoder

Bincolor BC-844 DC 12V 24V DMX512-RDM constant voltage decoder controller is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard RDM-DMX512/1990 signal to PWM signal.

User can choose 1~4 output channels, 65536 gray scales, workable for single color, color temperature, RGB and RGBW led lamp.

Feature function:

1. Easy operation with OLED screen and touch buttons.

2. 8bit (256 levels)/16bit (65536 levels) grey level optional.

3. With RDM remote management protocol, the operations can be completed via the RDM master console,

such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

4. Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.

5. Power-off data saved function.

6. Over current protection and short circuit protection.

Product parameter：

Model:BC-844

Input voltage:DC12V-24V

Max load current:5A×4CH, Max 20A

Max output power:240W(12V)/480W(24V)

Scale Levels:256 levels(8bit)/65536 levels(16bit)

Input signal:DMX512/RDM

Output Signal:Constant Voltage PWM×4CH

Output frequency:3K、6K、12K、24K selectable

DMX512 socket:Terminal block

Control mode:DIM /CT /RGB /RGBW 4 modes switch

Dimension:L176 X W46 X H30(mm)

Weight (G.W):140g

Package Included:

1 Piece of Bincolor BC-844 DC 12V 24V DMX512-RDM constant voltage decoder controller

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_1

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_2

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_3

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_4

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_5

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_6

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_7

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_8

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_9

Bincolor_DC_12V_24V_BC_844_constant_voltage_DMX512_RDM_decoder_controller_10

CE and RoHS approved
