Feature function:
Automatically adapt input voltage DC12V-24V.
Input standard DMX512 signal; 3-digital-display shows DMX address code..
2(BC-832)/3(BC-833)/4(BC-834) channels output; 4096 grey scales each; logarithmic dimming; lamplight
soft& stable without strobe flash.
DMX Master mode, Slave mode available.
4 (BC-832)/8 (BC-833)/8 (BC-834)color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
Power loss memory function.
BC-834

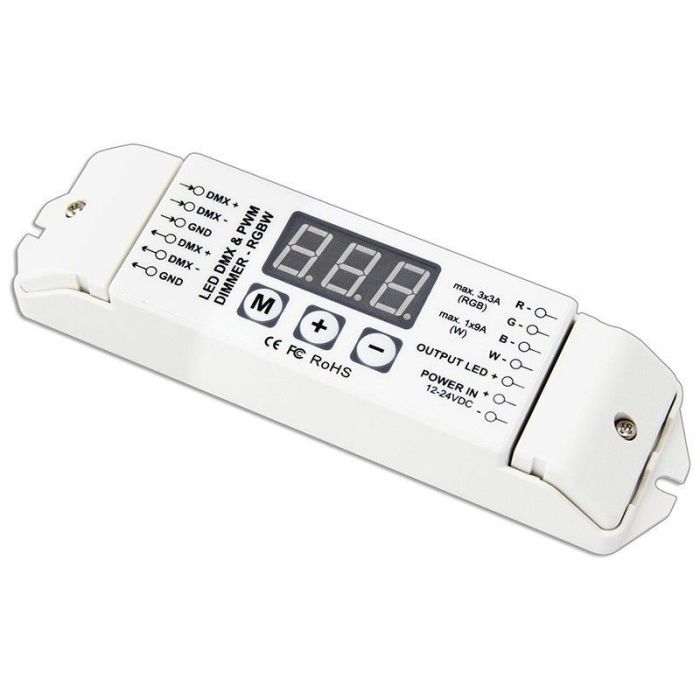

Product Model:BC-834 4CH DMX512 decoder
Input voltage:DC12V-DC24V
Max load current:RGB: 3A×3CH W: 9A×1CH
Max Output Power:RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216W(24V)
Grey Scale:4096 levels×4
Input Signal:DMX512/1990
Output Signal:Constant Voltage PWM×4
Decode Channel:4CH
DMX512 socket:Terminal Block
Dimension:L176×W46×H30(mm)
Weight (G.W):175g
Package Included:
1 Piece of Bincolor BC-834 PWM CV DMX512/1990 12V-24V Decoder Led Controller
CE and RoHS approved
