Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage
LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990
signal to PWM signal. user can choose 1~4 output channels, 4096 Grey Scales. It can be used as DMX512
master or as DMX decoder to connect computerized digital output console with analog silicon case
and controls LED lamps of architecture and lighting.
Specifications:
Model: 4CH Constant Voltage decoder
Input voltage: DC12V-DC24V
Max load current: 4CH×6A
Max Output Power: 288W(12V)/576W(24V)
Grey Scale: 4096 levels×4
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM
Decode Channel: 4CH
DMX512 socket : RJ45
Dimension: L111×W46×H66(mm)
Weight (G.W): 133g
Package Included:

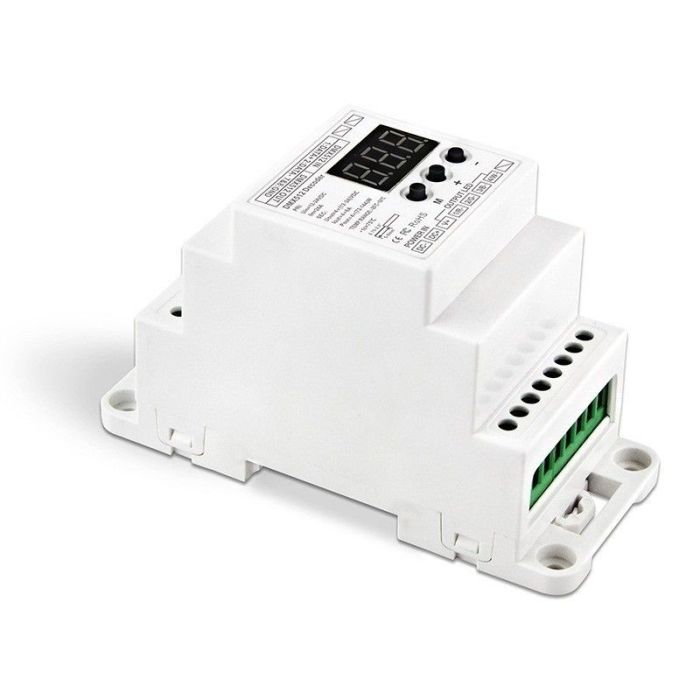

1 Piece of Bincolor BC-834-DIN-RJ45 4CH DMX512/1990 Decoder DIN Rail Led Controller
CE and RoHS approved
