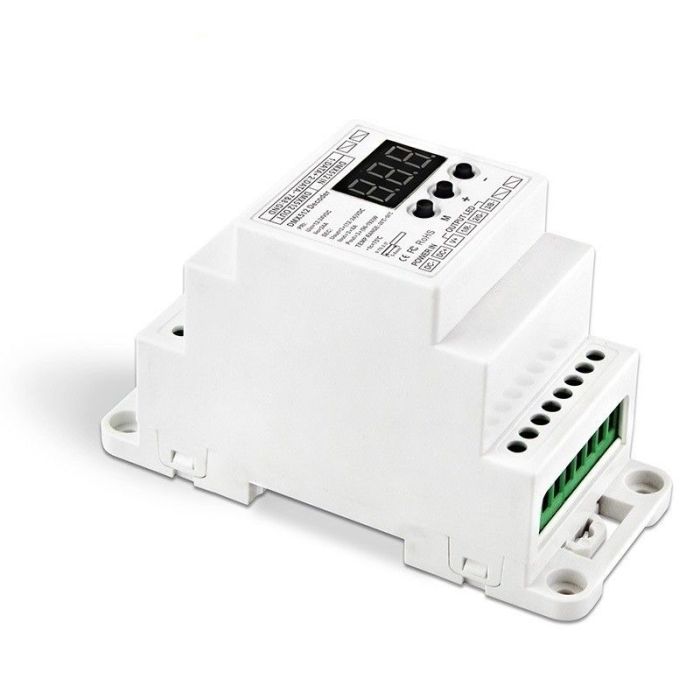

Bincolor BC-833-DIN-RJ45 3CH DIN Rail DMX512/1990 Decoder Led Controller

Be the first to review this product

£24.76

In stock

SKU

Bincolor BC-833-DIN-RJ45 3CH DIN Rail DMX512

Bincolor BC-833-DIN-RJ45 3CH DIN Rail DMX512/1990 Decoder Led Controller is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications:

Model: 3CH Constant Voltage decoder

Input voltage: DC12V-DC24V

Max load current: 3CH×8A

Max Output Power: 288W(12V)/576W(24V)

Grey Scale: 4096 levels×3

Input Signal: DMX512/1990

Output Signal: Constant Voltage PWM

Decode Channel: 3CH

DMX512 socket: RJ45

Dimension: L111×W46×H66(mm)

Weight (G.W): 133g

Feature function:

Automatically adapts input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address code.

3 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.

DMX Master mode, slave mode available.

Built-in 8 color changing modes and 10 speed scales.

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Wrong wiring protection at DMX port,over current protection and short circuit protection.

The DIN rail style design facilitates the installation of large-scale projects.

Package Included:

1 Piece of Bincolor BC-833-DIN-RJ45 3CH DIN Rail DMX512/1990 Decoder Led Controller

Bincolor_Controller_BC_833_DIN_RJ45_1

Bincolor_Controller_BC_833_DIN_RJ45_2

Bincolor_Controller_BC_833_DIN_RJ45_3

Bincolor_Controller_BC_833_DIN_RJ45_4

Bincolor_Controller_BC_833_DIN_RJ45_5

Bincolor_Controller_BC_833_DIN_RJ45_6

CE and RoHS approved
