Feature function:
Automatically adapt input voltage DC12V-24V.
Input standard DMX512 signal; 3-digital-display shows DMX address code..
2(BC-832)/3(BC-833)/4(BC-834) channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
DMX Master mode, Slave mode available.
4 (BC-832)/8 (BC-833)/8 (BC-834)color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
Power loss memory function.
BC-833

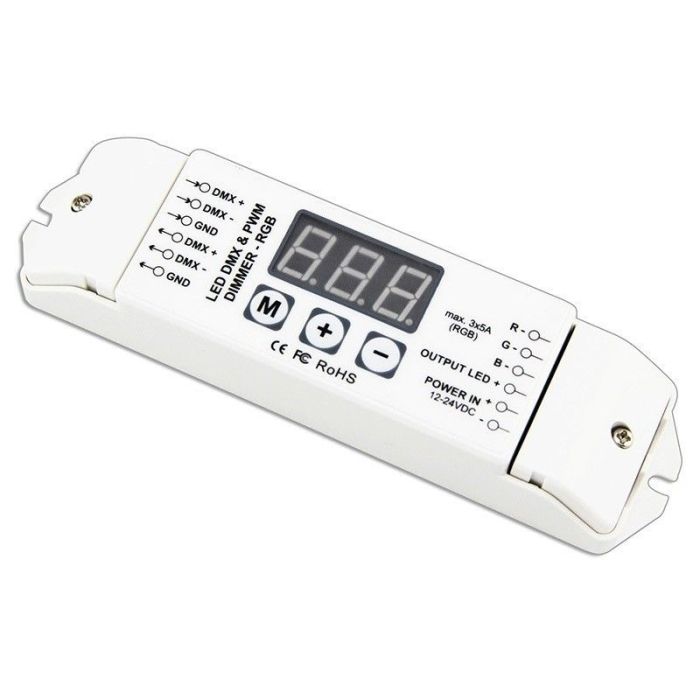

Product Model:BC-833 3CH DMX512 decoder
Input voltage:DC12V-DC24V
Max load current:5A/CH×3
Max Output Power:180W(12V)/360W(24V)
Grey Scale:4096 levels×3
Input Signal:DMX512/1990
Output Signal:Constant Voltage PWMX3
Decode Channel:3CH
DMX512 socket:Terminal Block
Dimension:L176×W46×H30(mm)
Weight (G.W):170g
Package Included:
1 Piece of Bincolor BC-833 3CH 12V-24V PWM CV DMX512/1990 Decoder Led Controller
CE and RoHS approved
