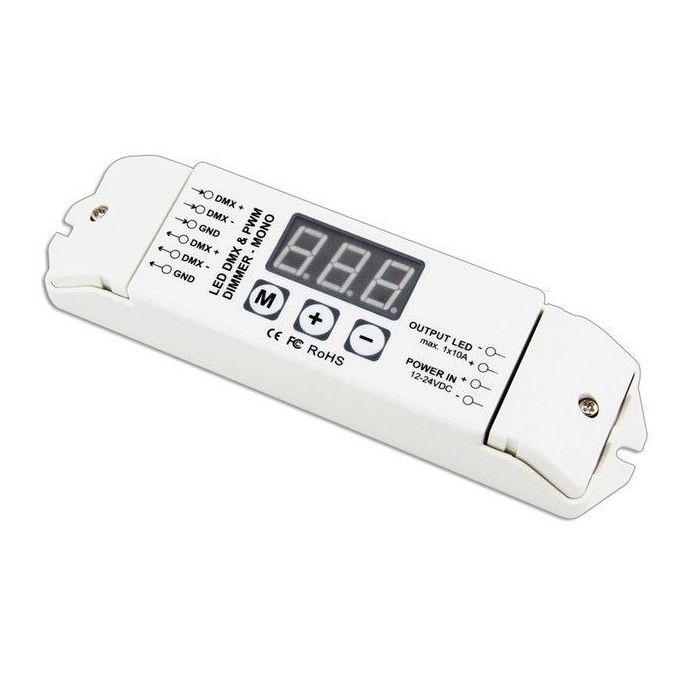

Bincolor BC-831 DMX512 Decoder PWM CC/CV Dimmer Led Driver Controller

Be the first to review this product

£20.12

In stock

SKU

Bincolor BC-831 DMX512 Decoder PWM CC/CV Dimmer Led Driver

Bincolor BC-831 DMX512 Decoder PWM CC/CV Dimmer Led Driver Controller is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Feature function:

Automatically adapt input voltage DC12V-24V(CV)

Input standard DMX512 signal; 3-digital-display shows DMX address code..

1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.

DMX Master mode, Slave mode available.

30 changing modes and 10 speed scales in master mode .

Indicator of the DMX512 signal receiving status.

Power loss memory function.

BC-831

Product Model:BC-831 CV 1CH DMX512 decoder

Input voltage:DC12V-DC24V

Max load current:1CH×10A

Max Output Power:120W(12V)/240W(24V)

Grey Scale:4096 levels×1

Input Signal:DMX512/1990

Output Signal:Constant Voltage PWM

Decode Channel:1CH

DMX512 socket:Terminal Block

Dimension:L176×W46×H30(mm)

Weight (G.W):170g

Package Included:

1 Piece of Bincolor BC-831 DMX512 Decoder PWM CC/CV Dimmer Led Driver Controller

Bincolor_Controller_BC_831_1

Bincolor_Controller_BC_831_2

Bincolor_Controller_BC_831_3

Bincolor_Controller_BC_831_4

Bincolor_Controller_BC_831_5

Bincolor_Controller_BC_831_6

Bincolor_Controller_BC_831_7

Bincolor_Controller_BC_831_8

CE and RoHS approved
