Feature function:
Working voltage from DC12V-DC24V.
Optical isolation between the input and output port.
Input and output standard DMX512 signal.
Amplify the DMX512/1990 signal and extend signal transmission distance.
One input channel, two independent electrical isolation signal output channels.
3000VDC； Isolation voltage 3000VDC.
Wrong wiring protection at DMX input and output port.
Product parameter:
Mode: BC-812
Input voltage: DC12V-24V
Input signal: DMX512/1990
Output signal: DMX512/1990
Input/output channel: One input channel，two output channels
Input/output isolated voltage: 3000VDC
DMX512 signal socket: Terminal block
Product Dimension: L176XW46XH30(mm)
Weight(G.W): 140g
Package Included:

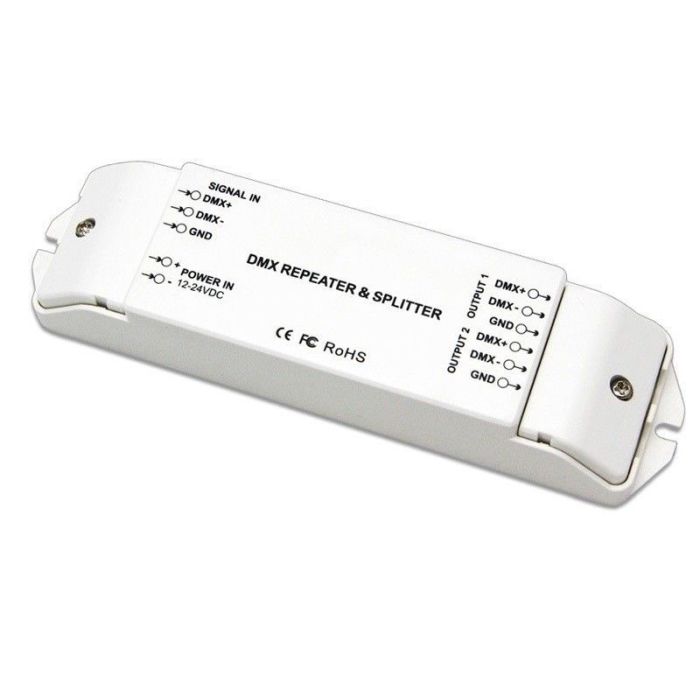

1 Piece of Bincolor BC-812 DMX Amplifier Splitter Repeater Led Power Controller
CE and RoHS approved
