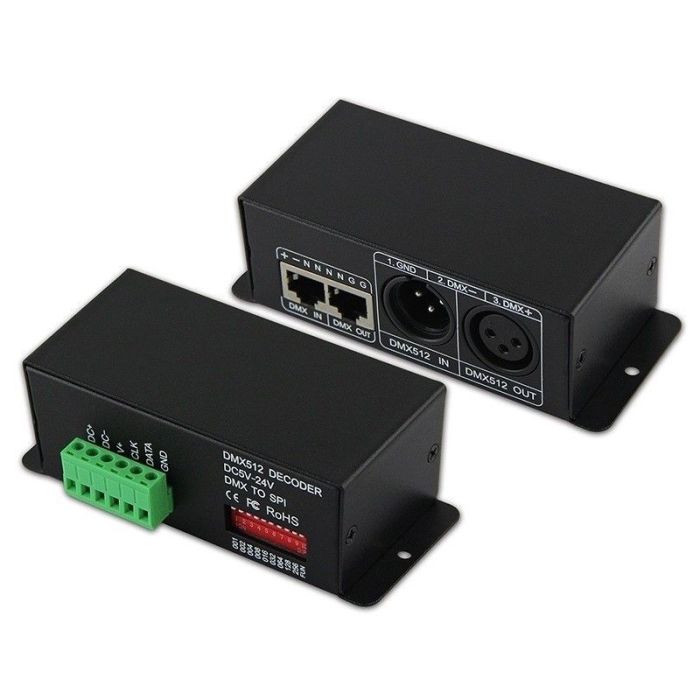

Bincolor BC-802 DMX512 to SPI TTL Convertor Decoder Led Controller

Be the first to review this product

£23.22

In stock

SKU

Bincolor BC-802 DMX512 to SP

Product Style

1 Piece of BC-802-3001

1 Piece of BC-802-8806

1 Piece of BC-802-2801

1 Piece of BC-802-9813

1 Piece of BC-802-1809

1 Piece of BC-802-6803

Qty

Bincolor BC-802 DMX512 to SPI TTL Convertor Decoder Led Controlleris high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Feature function:

1.In put standard DMX512 protocol，Address can be set by DIP.

2.Automatically adapt input voltage DC12V-24V.

3.Self-Changing Mode exist.

4.Output TTL Signal.

5.Power loss memory function.

Product Paramete:

model:BC-802-6803

Input voltage:DC5V～DC24V

Input signal:DMX512 /1990

Output signal:LPD6803, LPD1101, D705, UCS6909, UCS6912

Decoder channels:512 DMX CH

Grey Scale:32 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

working temperature：-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

modeL:BC-802-1809

Input voltage:DC5V～DC24V

Input signal:DMX512/1990

Output signal:TM1803, TM1804,TM1809,TM1812,UCS1903,UCS1909,UCS1912,UCS2903,UCS2909,UCS2912,WS2811

Decoderchannels:512 DMX CH

Grey Scale:256 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

workingtemperature:-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

model:BC-802-9813

Input voltage:DC5V～DC24V

Input signal:DMX512/1990

Output signal:P9813

Decoder channels:512 DMX CH

Grey Scale:256 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

working temperature:-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

model:BC-802-2801

Input voltage:DC5V～DC24V

Input signal: DMX512/1990

Output signal:WS2801, WS2803

Decoder channels:512 DMX CH

Grey Scale:256 levels

DMX512 socket: XLR-3，RJ45

Dimming range:0~100%

working temperature：-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

model:BC-802-8806

Input voltage:DC5V～DC24V

Input signal:DMX512/1990

Output signal:LPD8803、LPD8806

Decoder channels:512 DMX CH

Grey Scale:256 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

working temperature:-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight(G.W):320g

model:BC-802-3001

Input voltage:DC5V～DC24V

Input signal:DMX512/1990

Output signal:TLS3001, TLS3002

Decoder channels:512 DMX CH

Grey Scale:256 levels

DMX512 socket:XLR-3，RJ45

Dimming range:0~100%

working temperature：-30℃～65℃

Dimension:L125×W52×H40mm

Package Size:L135×W70×H50mm

Weight (G.W):320g

Package Included:

1 Piece of Bincolor BC-802 DMX512 to SPI TTL Convertor Decoder Led Controller

Bincolor_Controller_BC_802_6803_1

Bincolor_Controller_BC_802_6803_2

Bincolor_Controller_BC_802_6803_3

Bincolor_Controller_BC_802_6803_4

Bincolor_Controller_BC_802_6803_5

Bincolor_Controller_BC_802_6803_6

Bincolor_Controller_BC_802_6803_7

Bincolor_Controller_BC_802_6803_8

Bincolor_Controller_BC_802_6803_9

Bincolor_Controller_BC_802_6803_10

CE and RoHS approved
