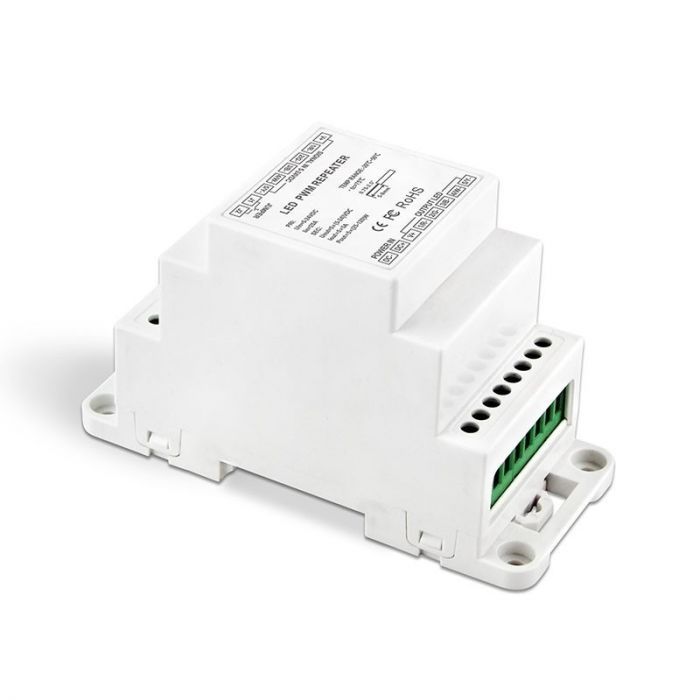

BC-965-DIN Bincolor Power Repeater DIN Rail DC5V-24V Amplifier Led Controller

Be the first to review this product

£13.74

In stock

SKU

BC-965-DIN Bincolor Power Repeater DIN Rail DC5V-24V Amplifier

BC-965-DIN Bincolor Power Repeater DIN Rail DC5V-24V Amplifier Led Controller is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DIN Rail LED Power Repeater is suitable for all BINCOLOR power-output style controllers' power expansion,

it accepts PWM SIGNAL, unlimited quantity of power repeater to be connected theoretically. Also,

the power repeater of constant voltage model and constant current model could be connected freely,

Suitable for synchronous control of different LED lamps.

Specifications:

Model: 5CH Power Repeater（BC-965-DIN）

Input voltage: DC5V-DC24V

Max Load Current: 5A×5CH Max 25A

Output Signal: Constant Voltage PWM

Max output power:125W/300W/600W(5V/12V/24V)

Dimension: L111×W46×H66(mm)

Weight (G.W) : 130g

Feature function:

Common anode input and output.

Sustain high frequency common anode PWM input signal.

Work with LED controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.

Over current protection and short circuit protection.

Optical isolation function, controller damage will not affect the repeater.

Output channels can be output independently or synchronously.

The DIN rail style facilitates the installation of large-scale projects.

Package Include:

1 Piece of Bincolor BC-965-DIN Power Repeater DIN Rail DC5V-24V Amplifier Led Controller
Bincolor_Controller_BC_963_DIN_1

Bincolor_Controller_BC_963_DIN_2

Bincolor_Controller_BC_963_DIN_3

Bincolor_Controller_BC_963_DIN_4

Bincolor_Controller_BC_965_DIN_5

Bincolor_Controller_BC_965_DIN_6

CE and RoHS approved
