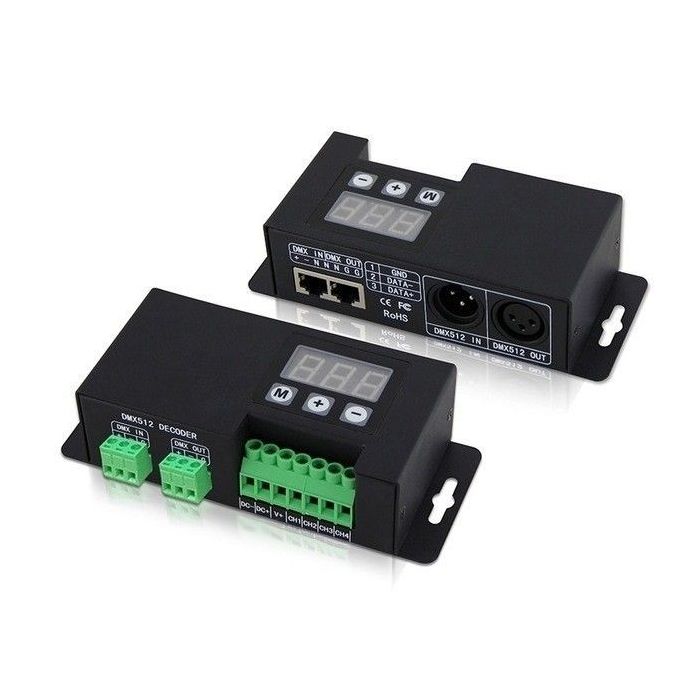

BC-854 Bincolor CV 4CH DMX512 Decoder DMX Signal Driver 3-digital-display Led Controller

Be the first to review this product

£30.67

In stock

SKU

BC-854 Bincolor CV 4CH DMX512 Decoder DMX Signal Driver

BC-854 Bincolor CV 4CH DMX512 Decoder DMX Signal Driver 3-digital-display Led Controller is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Basic Features:

Automatically adapts input voltage DC12V-24V(CV)

Input standard DMX512 signal; 3-digital-display shows DMX address.

4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.

Support master mode or slave mode;

8 color changing modes and 10 speed scales in master mode .

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Over current protection and short circuit protection.Wrong wiring protection at DMX prot.

Multiple DMX512 signal interface.

Specifications:

BC-854

Product Model:4CH DMX512Decoder

Input voltage:DC12V-DC24V

Max load current:RGB:4A×3CH W:12A×1CH

Max output power:RGB:48W×3CH W:144W(12V)/RGB:96W×3CH W:288W(24V)

Grey Scale:4096 levels×4

Input Signal:DMX512/1990

Output Signal:Constant Voltage PWM×4

Decode Channel:4CH

DMX512 socket:XLR-3R port/ RJ45 port/terminal block

Dimension :L157×W65×H40(mm)

Weight (G.W):450g

Package Included:

1 Piece of BC-854 Bincolor CV 4CH DMX512 Decoder DMX Signal Driver 3-digital-display Led Controller

Bincolor_Controller_BC_854_1
Bincolor_Controller_BC_854_2
Bincolor_Controller_BC_854_3
Bincolor_Controller_BC_854_4
Bincolor_Controller_BC_854_5
Bincolor_Controller_BC_854_6
Bincolor_Controller_BC_854_7

CE and RoHS approved
