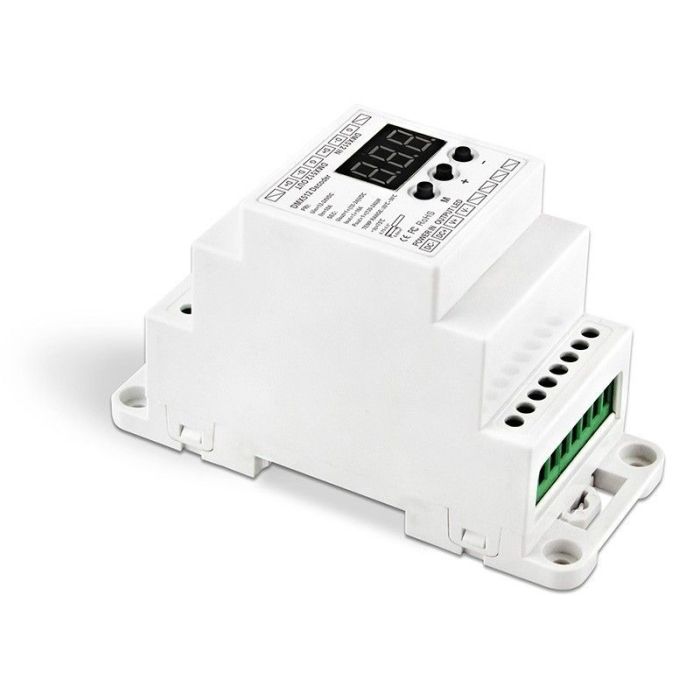

BC-831-DIN Bincolor DMX512 DIN Rail Decoder Digital Tube Display Led Controller

Be the first to review this product

£16.16

In stock

SKU

BC-831-DIN Bincolor DMX512 DIN Rail Decoder Digital Tube Display

BC-831-DIN Bincolor DMX512 DIN Rail Decoder Digital Tube Display Led Controller is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoau.com

Agoau.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Constant Voltage DMX512 Deloped coder which is deveonly for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.

One channel output, max 10A output each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX

decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.

Specifications:

Model: 1CH Constant Voltage decoder

Input voltage: DC12V-DC24V

Max load current: 1CH×10A

Max Output Power: 120W(12V)/240W(24V)

Grey Scale: 4096 levels×1

Input Signal: DMX512/1990

Output Signal: Constant Voltage PWM

Decode Channel: 1CH

DMX512 socket : Terminal Block

Dimension: L111×W46×H66(mm)

Weight (G.W) : 135g

Feature function:

Automatically adapts input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address code.

1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.

DMX Master mode, slave mode available.

Built-in 8 color changing modes and 10 speed scales.

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Wrong wiring protection at DMX port, over current protection and short circuit protection.

The DIN rail style design facilitates the installation of large-scale projects.

Package Included:

1 Piece of BC-831-DIN Bincolor DMX512 DIN Rail Decoder Digital Tube Display Led Controller

Bincolor_Controller_BC_831_DIN_1

Bincolor_Controller_BC_831_DIN_2

Bincolor_Controller_BC_831_DIN_3

Bincolor_Controller_BC_831_DIN_4

Bincolor_Controller_BC_831_DIN_5

CE and RoHS approved
